P. 231
XQUISITE XQUISITE

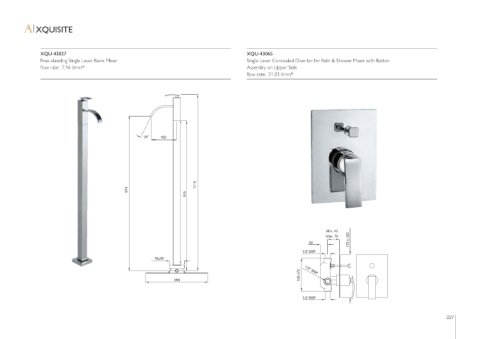

XQU-43011B XQU-43009B XQU-43027 XQU-43065
Single Lever Basin Mixer without Popup Waste System with 450mm Long Braided Hoses. Single Lever Tall Boy with 140mm Extension Body Fixed Spout without Free-standing Single Lever Basin Mixer Single Lever Concealed Divertor for Bath & Shower Mixer with Button
flow rate: 6.29 l/min* Popup Waste System with 600mm Long Braided Hoses flow rate: 7.16 l/min* Assembly on Upper Side
Also available flow rate: 6.23 l/min* flow rate: 31.03 l/min*
XQU-43051B with Popup Waste System
26° 162
1110
974
945
Min. 40
150 Max. 70 175 x 125
102 45 ° 80 30
290 102 45° 1/2"BSP
Sq.55 220 Sq.95
135 x72 1/2" BSP
390
Sq.55
1/2"BSP
1/2"BSP 1/2"BSP
226 227
