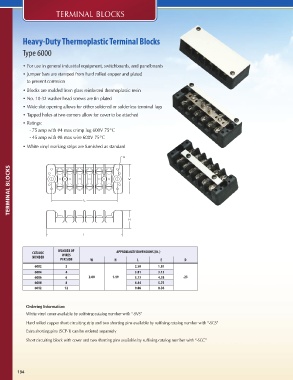

Page 214 - PUC 2017 Master Catalog
P. 214
TERMINAL BLOCKS
Heavy-Duty Thermoplastic Terminal Blocks
Type 6000
• For use in general industrial equipment, switchboards, and panelboards
• Jumper bars are stamped from hard rolled copper and plated
to prevent corrosion
• Blocks are molded from glass reinforced thermoplastic resin
• No. 10-32 washer head screws are tin plated
• Wide slot opening allows for either soldered or solderless terminal lugs
• Tapped holes at two corners allow for cover to be attached
• Ratings:
- 75 amp with #4 max crimp lug 600V 75°C
- 45 amp with #8 max wire 600V 75°C
• White vinyl marking strips are furnished as standard
TERMINAL BLOCKS
NUMBER OF
CATALOG WIRES APPROXIMATE DIMENSIONS (IN.)
NUMBER PER SIDE W H L E D
6002 2 2.50 1.81
6004 4 3.81 3.13
6006 6 2.00 1.19 5.13 4.38 .23
6008 8 6.44 5.75
6012 12 9.06 8.38
Ordering Information:
White vinyl cover available by suffixing catalog number with “-SVS”
Hard rolled copper short circuiting strip and two shorting pins available by suffixing catalog number with “-SCS”
Extra shorting pins (SCP-1) can be ordered separately
Short circuiting block with cover and two shorting pins available by suffixing catalog number with “-SCC”
