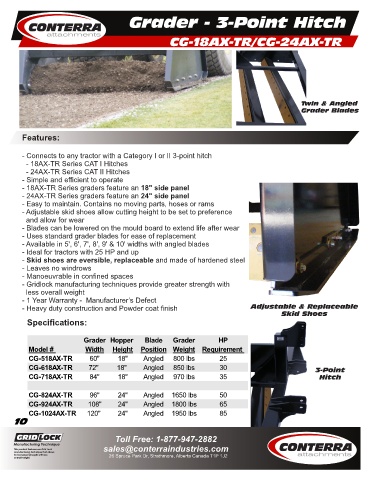

Page 10 - Conterra Attachments 2020 Catalogue.cdr

Grader - 3-Point Hitch
Grader - 3-Point Hitch
CG-18AX-TR/CG-24AX-TR
CG-18AX-TR/CG-24AX-TR

Twin & Angled
Grader Blades

Features:

- Connects to any tractor with a Category I or II 3-point hitch
- 18AX-TR Series CAT I Hitches
- 24AX-TR Series CAT II Hitches
- Simple and efficient to operate
- 18AX-TR Series graders feature an 18" side panel
- 24AX-TR Series graders feature an 24" side panel
- Easy to maintain. Contains no moving parts, hoses or rams
- Adjustable skid shoes allow cutting height to be set to preference
and allow for wear
- Blades can be lowered on the mould board to extend life after wear
- Uses standard grader blades for ease of replacement
- Available in 5', 6', 7', 8', 9' & 10' widths with angled blades
- Ideal for tractors with 25 HP and up
- Skid shoes are eversible, replaceable and made of hardened steel
- Leaves no windrows
- Manoeuvrable in confined spaces
- Gridlock manufacturing techniques provide greater strength with
less overall weight
- 1 Year Warranty - Manufacturer’s Defect
- Heavy duty construction and Powder coat finish Adjustable & Replaceable
Skid Shoes
Specifications:

Grader Hopper Blade Grader HP
Model # Width Height Position Weight Requirement
CG-518AX-TR 60" 18" Angled 800 lbs 25
CG-618AX-TR 72" 18" Angled 850 lbs 30 3-Point
CG-718AX-TR 84" 18" Angled 970 lbs 35 Hitch

CG-824AX-TR 96" 24" Angled 1650 lbs 50
CG-924AX-TR 108" 24" Angled 1800 lbs 65
CG-1024AX-TR 120" 24" Angled 1950 lbs 85
10
