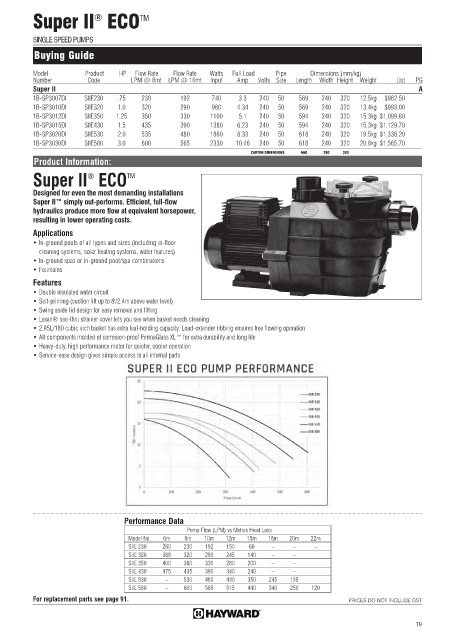

Page 23 - 2021 Hayward Buyers Guide

Super II ECO TM
®

SINGLE SPEED PUMPS

Buying Guide

Model Product HP Flow Rate Flow Rate Watts Full Load Pipe Dimensions (mm/kg)
Number Code LPM @ 8mt LPM @ 10mt Input Amp Volts Size Length Width Height Weight List PG
Super II A
1B-SP3007DI SIIE230 .75 230 192 740 3.3 240 50 569 240 320 12.5kg $982.50
1B-SP3010DI SIIE320 1.0 320 290 980 4.34 240 50 569 240 320 13.4kg $993.00
1B-SP3012DI SIIE350 1.25 350 330 1100 5.1 240 50 594 240 320 15.3kg $1,099.60
1B-SP3015DI SIIE430 1.5 435 390 1380 6.23 240 50 594 240 320 15.3kg $1,129.70
1B-SP3020DI SIIE530 2.0 535 480 1860 8.33 240 50 618 240 320 19.5kg $1,338.20
1B-SP3030DI SIIE580 3.0 600 565 2330 10.46 240 50 618 240 320 20.8kg $1,565.70
CARTON DIMENSIONS 660 280 380
Product Information:

Super II ECO TM
®
Designed for even the most demanding installations
Super II™ simply out-performs. Efficient, full-flow
hydraulics produce more flow at equivalent horsepower,
resulting in lower operating costs.
Applications
• In-ground pools of all types and sizes (including in-floor
cleaning systems, solar heating systems, water features)
• In-ground spas or in-ground pool/spa combinations
• Fountains
Features
• Double insulated water circuit
• Self-priming (suction lift up to 8'/2.4m above water level)
• Swing aside lid design for easy removal and fitting
• Lexan® see-thru strainer cover lets you see when basket needs cleaning
• 2.95L/180 cubic inch basket has extra leaf-holding capacity. Load-extender ribbing ensures free flowing operation
• All components molded of corrosion-proof PermaGlass XL™ for extra durability and long life
• Heavy-duty, high performance motor for quieter, cooler operation
• Service-ease design gives simple access to all internal parts

Performance Data
Pump Flow (LPM) vs Metres Head Loss
Model No. 6m 8m 10m 12m 15m 18m 20m 22m
SIIE 230 260 230 192 150 60 – – –
SIIE 320 368 320 290 245 140 – –
SIIE 350 400 360 330 280 200 – –
SIIE 430 475 435 390 340 240 – –
SIIE 530 – 530 480 430 350 245 135
SIIE 580 – 600 565 515 440 340 250 120
For replacement parts see page 91. PRICES DO NOT INCLUDE GST
