Page 559 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

POWER-OFF STALL SPEEDS ACAWS
LANDING

MODEL: C-130J GROUND
AE2100D3 ENGINES GEAR UP OR DOWN
DATE: SEPTEMBER 1998
DATA BASIS: FLIGHT TEST 100% FLAPS
150
TAKEOFF

140 FIRE/SMK
NORM

PRES/OXY
STALL SPEED (Vs), CALIBRATED AIRSPEED - KNOTS
130
BANK ANGLE - DEG. ENG/PROP

120 45

FUEL
30
110
15 AAR

0
SPEC 100 NOT FOR FLIGHT ELEC

90 HYD

FLT CTRL
80

GEAR
70
80 90 100 110 120 130 140 150 160 170 180
GROSS WEIGHT - 1,000 POUNDS
3278-03-03-028-03
DOR/RMP
PERF

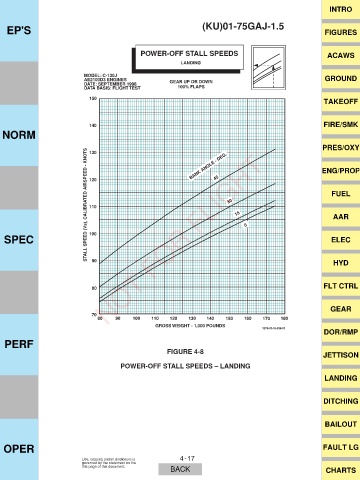

FIGURE 4-8 JETTISON

POWER-OFF STALL SPEEDS – LANDING
