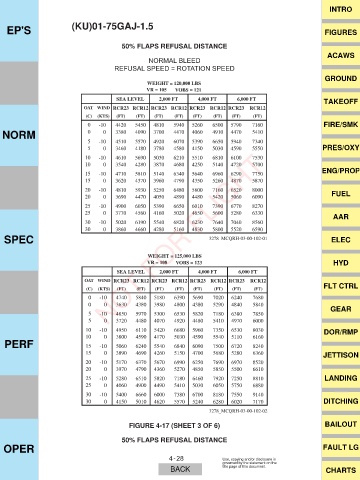

Page 570 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

50% FLAPS REFUSAL DISTANCE
ACAWS
1250$/ %/(('
5()86$/ 63((' 527$7,21 63(('
GROUND
WEIGHT = 120,000 LBS
VR = 105 VOBS = 121
SEA LEVEL 2,000 FT 4,000 FT 6,000 FT TAKEOFF
OAT WIND RCR23 RCR12 RCR23 RCR12 RCR23 RCR12 RCR23 RCR12
(C) (KTS) (FT) (FT) (FT) (FT) (FT) (FT) (FT) (FT)
0 -10 4420 5450 4810 5940 5260 6500 5790 7160 FIRE/SMK
NORM 0 0 3380 4090 3700 4470 4060 4910 4470 5410
5 -10 4510 5570 4920 6070 5390 6650 5940 7340
5 0 3460 4180 3780 4580 4150 5030 4590 5550 PRES/OXY
10 -10 4610 5690 5030 6210 5510 6810 6100 7530
10 0 3540 4280 3870 4680 4250 5140 4720 5700
15 -10 4710 5810 5140 6340 5640 6960 6290 7750 ENG/PROP
15 0 3620 4370 3960 4790 4350 5260 4870 5870
20 -10 4810 5930 5250 6480 5800 7160 6520 8000 FUEL
20 0 3690 4470 4050 4890 4480 5420 5060 6090
25 -10 4900 6050 5390 6650 6010 7390 6770 8270
25 0 3770 4560 4160 5020 4650 5600 5280 6330 AAR
30 -10 5020 6190 5540 6820 6230 7640 7040 8560
30 0 3860 4660 4280 5160 4830 5800 5520 6590
SPEC NOT FOR FLIGHT ELEC
3278_MCQRH-03-00-102-01

WEIGHT = 125,000 LBS
VR = 108 VOBS = 123 HYD
SEA LEVEL 2,000 FT 4,000 FT 6,000 FT
OAT WIND RCR23 RCR12 RCR23 RCR12 RCR23 RCR12 RCR23 RCR12 FLT CTRL
(C) (KTS) (FT) (FT) (FT) (FT) (FT) (FT) (FT) (FT)
0 -10 4740 5840 5180 6390 5690 7020 6240 7680
0 0 3630 4380 3980 4800 4380 5290 4840 5840 GEAR
5 -10 4850 5970 5300 6530 5820 7180 6380 7850
5 0 3720 4480 4070 4920 4480 5410 4970 6000
10 -10 4950 6110 5420 6680 5960 7350 6530 8030 DOR/RMP
10 0 3800 4590 4170 5030 4590 5540 5110 6160
PERF 15 -10 5060 6240 5540 6840 6090 7500 6720 8240
15 0 3890 4690 4260 5150 4700 5680 5280 6360 JETTISON
20 -10 5170 6370 5670 6990 6250 7690 6970 8520
20 0 3970 4790 4360 5270 4850 5850 5500 6610
25 -10 5280 6510 5820 7180 6460 7920 7250 8810 LANDING
25 0 4060 4900 4490 5410 5030 6050 5750 6880
30 -10 5400 6660 6000 7380 6700 8180 7550 9140
30 0 4150 5010 4620 5570 5240 6280 6020 7170 DITCHING
3278_MCQRH-03-00-102-02

FIGURE 4-17 (SHEET 3 OF 6) BAILOUT

50% FLAPS REFUSAL DISTANCE
OPER FAULT LG

4 - Use, copying and/or disclosure is
governed by the statement on the
BACK title page of this document. CHARTS
