4.0 Cisco IPT

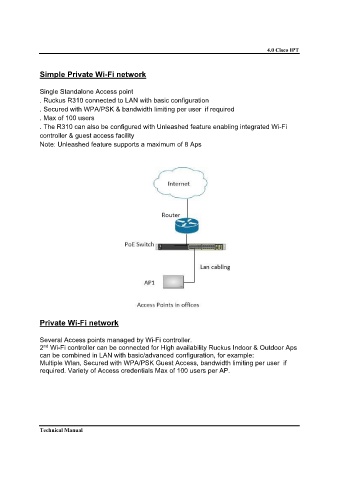

Simple Private Wi-Fi network

Single Standalone Access point
. Ruckus R310 connected to LAN with basic configuration
. Secured with WPA/PSK & bandwidth limiting per user if required
. Max of 100 users
. The R310 can also be configured with Unleashed feature enabling integrated Wi-Fi
controller & guest access facility
Note: Unleashed feature supports a maximum of 8 Aps

Private Wi-Fi network

Several Access points managed by Wi-Fi controller.
nd
2 Wi-Fi controller can be connected for High availability Ruckus Indoor & Outdoor Aps
can be combined in LAN with basic/advanced configuration, for example:
Multiple Wlan, Secured with WPA/PSK Guest Access, bandwidth limiting per user if
required. Variety of Access credentials Max of 100 users per AP.

Technical Manual
