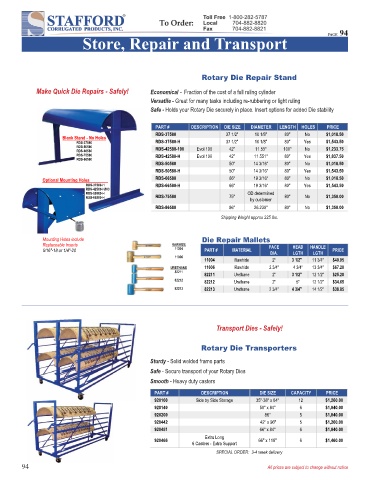

PAGE 94
Store, Repair and Transport

Rotary Die Repair Stand

Make Quick Die Repairs - Safely! Economical - Fraction of the cost of a full ruling cylinder
Versatile - Great for many tasks including re-rubbering or light ruling
Safe - Holds your Rotary Die securely in place. Insert options for added Die stability

PART # DESCRIPTION DIE SIZE DIAMETER LENGTH HOLES PRICE
RDS-37580 37 1/2" 10 1/8" 80" No $1,018.50
Blank Stand - No Holes
RDS-37580 RDS-37580-H 37 1/2" 10 1/8" 80" Yes $1,543.50
RDS-50580 RDS-42580-100 Evol 100 42'' 11.55" 100" No $1,233.75
RDS-66580
RDS-75580 RDS-42580-H Evol 100 42'' 11.551" 80" Yes $1,837.50
RDS-86580
RDS-50580 50" 14 3/16'' 80" No $1,018.50
RDS-50580-H 50" 14 3/16'' 80" Yes $1,543.50
Optional Mounting Holes____ RDS-66580 66" 19 3/16'' 80" No $1,018.50
RDS-37580-H RDS-66580-H 66" 19 3/16'' 80" Yes $1,543.50
RDS-42580-H/HC
RDS-50580-H OD determined
RDS-66580-H RDS-75580 75'' by customer 80" No $1,350.00
RDS-86580 86'' 26.230'' 80" No $1,350.00
Shipping Weight approx 225 lbs.

Mounting Holes include Die Repair Mallets
Replaceable Inserts FACE HEAD HANDLE
5/16"-18 or 1/4"-20 PART # MATERIAL DIA. LGTH LGTH PRICE
11004 Rawhide 2" 3 1/2" 11 3/4" $40.95
11006 Rawhide 2 3/4" 4 3/4" 13 3/4" $67.20
82211 Urethane 2" 3 1/2" 12 1/2" $25.20
82212 Urethane 2" 5" 12 1/2" $34.65
82213 Urethane 2 3/4" 4 3/4" 14 1/2" $38.85

Transport Dies - Safely!

Rotary Die Transporters

Sturdy - Solid welded frame parts
Safe - Secure transport of your Rotary Dies
Smooth - Heavy duty casters
PART # DESCRIPTION DIE SIZE CAPACITY PRICE
920100 Side by Side Storage 35"-38" x 84" 12 $1,260.00
920140 50" x 84" 6 $1,040.00
920200 86'' 5 $1,040.00
920442 42'' x 96'' 5 $1,260.00
920451 66" x 84" 6 $1,040.00
Extra Long
920466 66'' x 118'' 6 $1,460.00
6 Casters - Extra Support
SPECIAL ORDER: 3-4 week delivery
94 All prices are subject to change without notice
