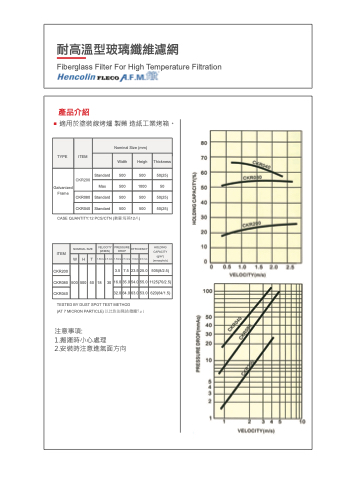

耐高溫型玻璃纖維濾網
Fiberglass Filter For High Temperature Filtration
.產品介紹
適用於塗裝線烤爐 製藥 造紙工業烤箱。
TYPE
ITEM
Nominal Size (mm)
Width
Heigh
Thickness
Galvanized Frame
CKR200
Standard
500
500
50(25)
Max
500
1000
50
CKR080
Standard
500
500
50(25)
CKR040
Standard
500
500
50(25)
CASE QUANTITY:12 PCS/CTN (數量:每箱12片)
ITEM
NOMINAL SIZE
VELOCITY (M/MIN)
PRESSURE DROP
EFFICIENCY
HOLDING CAPACITY (g/m2) (mmaq/m/s)
W
H
T
1.5m/s
2.5 m/s
1.5m/s
2.5 m/s
1.5m/s
2.5 m/s
CKR200
500
500
50
18
30
3.5
7.5
23.5
25.0
505(8/2.5)
CKR080
16.0
35.0
54.0
55.0
1125(70/2.5)
CKR040
32.0
64.0
63.0
53.0
620(64/1.5)
TESTED BY DUST SPOT TEST METHOD
(AT 7 MICRON PARTICLE) 以比色法測試(微塵7μ)
注意事項: 1.搬運時小心處理 2.安裝時注意進氣面方向
