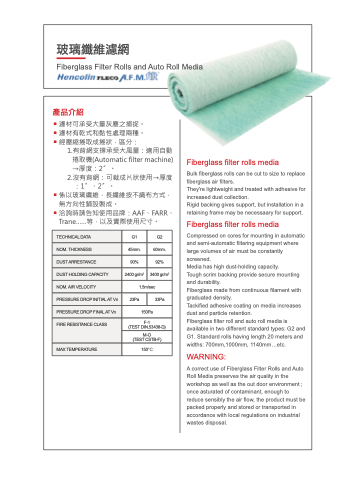

Page 14 - Demo

玻璃纖維濾網
Fiberglass Filter Rolls and Auto Roll Media
.產品介紹
.濾材可承受大量灰塵之捕捉。 濾材有乾式和黏性處理兩種。 經壓縮捲取成捲狀，區分:
1.有背網支撐承受大風量:適用自動 捲取機(Automatic filter machine) →厚度:2〞。
Fiberglass filter rolls media
Bulk fiberglass rolls can be cut to size to replace fiberglass air filters.
They're lightweight and treated with adhesive for increased dust collection.
Rigid backing gives support, but installation in a retaining frame may be necessaary for support.
Fiberglass filter rolls media
Compressed on cores for mounting in automatic and semi-automatic filtering equipment where large volumes of air must be constantly screened.
Media has high dust-holding capacity.
Tough scrim backing provide secure mounting and durability.
Fiberglass made from continuous filament with graduated density.
Tackified adhesive coating on media increases dust and particle retention.
Fiberglass filter roll and auto roll media is available in two different standard types: G2 and G1. Standard rolls having length 20 meters and widths: 700mm,1000mm, 1140mm...etc.
WARNING:
A correct use of Fiberglass Filter Rolls and Auto Roll Media preserves the air quality in the workshop as well as the out door environment ; once asturated of contaminant, enough to reduce sensibly the air flow, the product must be packed properly and stored or transported in accordance with local regulations on industrial wastes disposal.
2.沒有背網:可裁成片狀使用→厚度 :1〞、2〞。
.係以玻璃纖維，長纖維按不織布方式， 無方向性鋪設製成。 洽詢時請告知使用品牌:AAF、FARR、 Trane......等，以及實際使用尺寸。
TECHNICAL DATA
G1
G2
NOM. THICKNESS
45mm.
60mm.
DUST ARRESTANCE
90%
92%
DUST HOLDING CAPACITY
2400 gr/m2
3400 gr/m2
NOM. AIR VELOCITY
1.5m/sec
PRESSURE DROP INITIAL AT Vn
23Pa
33Pa
PRESSURE DROP FINAL AT Vn
150Pa
FIRE RESISTANCE CLASS
F-1
(TEST DIN.53438-D)
M-O (TEST CSTB-F)
MAX TEMPERATURE
150°C
