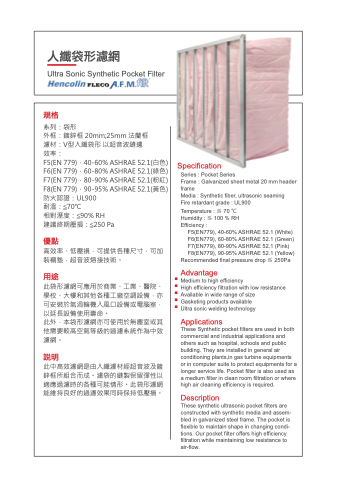

Page 18 - Demo

人纖袋形濾網
Ultra Sonic Synthetic Pocket Filter
規格
系列:袋形
外框:鍍鋅框 20mm;25mm 法蘭框 濾材:V型人纖袋形 以超音波縫邊
效率:
F5(EN 779)，40-60% ASHRAE 52.1(白色) F6(EN 779)，60-80% ASHRAE 52.1(綠色) F7(EN 779)，80-90% ASHRAE 52.1(粉紅) F8(EN 779)，90-95% ASHRAE 52.1(黃色) 防火認證:UL900
耐溫:≦70°C
相對溼度:≦90% RH 建議終期壓損:≦250 Pa
優點
高效率、低壓損，可提供各種尺寸，可加
裝襯墊，超音波熔接技術。
用途
此袋形濾網可應用於商業、工業、醫院、
學校、大樓和其他各種工廠空調設備，亦
可安裝於氣渦輪機入風口設備或電腦室，
以延長設備使用壽命。
此外，本袋形濾網亦可使用於無塵室或其
他需要較高空氣等級的過濾系統作為中效
濾網。
說明
此中高效濾網是由人纖濾材經超音波及鍍
鋅框所組合而成。濾袋的縫製保留彈性以
適應過濾時的各種可能情形。此袋形濾網
能維持良好的過濾效果同時保持低壓損。
Specification
Series : Pocket Series
Frame : Galvanized sheet metal 20 mm header frame
Media : Synthetic fiber, ultrasonic seaming
Fire retardant grade : UL900
Temperature : ≦ 70 °C Humidity : ≦ 100 % RH Efficiency :
F5(EN779), 40-60% ASHRAE 52.1 (White) F6(EN779), 60-80% ASHRAE 52.1 (Green) F7(EN779), 80-90% ASHRAE 52.1 (Pink) F8(EN779), 90-95% ASHRAE 52.1 (Yellow)
.Recommended final pressure drop ≦ 250Pa
.Advantage
Medium to high efficiency
High efficiency filtration with low resistance Available in wide range of size
Gasketing products available
Ultra sonic welding technology
Applications
These Synthetic pocket filters are used in both commercial and industrial applications and others such as hospital, schools and public building. They are installed in general air conditioning plants,in gas turbine equipments or in computer suite to protect equipments for a longer service life. Pocket filter is also used as a medium filter in clean room filtration or where high air cleaning efficiency is required.
Description
These synthetic ultrasonic pocket filters are constructed with synthetic media and assem- bled in galvanized steel frame. The pocket is flexible to maintain shape in changing condi- tions. Our pocket filter offers high efficiency filtration while maintaining low resistance to air-flow.
