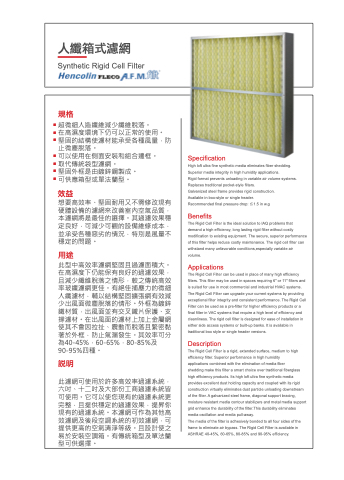

人纖箱式濾網
Synthetic Rigid Cell Filter
.規格 .超微細人造纖維減少纖維脫落。
.在高濕度環境下仍可以正常的使用。 .堅固的結構使濾材能承受各種風量，防 .止微塵脫落。 .可以使用在側面安裝和組合邊框。
取代傳統袋型濾網。
堅固外框是由鍍鋅鋼製成。
可供應箱型或單法蘭型。
效益
想要高效率、堅固耐用又不需修改現有
硬體設備的濾網來改善室內空氣品質，
本濾網將是最佳的選擇。其過濾效果穩
定良好，可減少可觀的設備維修成本，
並承受各種惡劣的情況，特別是風量不
穩定的問題。
用途
此型中高效率濾網堅固且過濾面積大。 在高濕度下仍能保有良好的過濾效果， 且減少纖維脫落之情形，較之傳統高效 率玻纖濾網更佳。有絕佳捕塵力的微細 人纖濾材，輔以結構堅固擴張網有效減 少出風面微塵脫落的情形。外框為鍍鋅 鐵材質，出風面並有交叉鐵片保護、支 撐濾材。在出風面的濾材上加上金屬網 使其不會因拉扯、震動而脫落且緊密黏 著於外框，防止氣漏發生。其效率可分 為40-45%，60-65%，80-85%及 90-95%四種。
說明
此濾網可使用於許多高效率過濾系統，
六吋、十二吋及大部份工商過濾系統皆
可使用。它可以使您現有的過濾系統更
完整，且提供穩定的過濾效果，提昇你
現有的過濾系統。本濾網可作為其他高
效濾網及後段空調系統的初效濾網，可
提供更高的空氣清淨等級。且設計使之
易於安裝空調箱。有傳統箱型及單法蘭
型可供選擇。
Specification
High loft ultra fine synthetic media eliminates fiber shedding. Superior media integrity in high humidity applications.
Rigid format prevents unloading in variable air volume systems. Replaces traditional pocket-style filters.
Galvanized steel frame provides rigid construction. Available in box-style or single header. Recommended final pressure drop: ≦1.5 in w.g
Benefits
The Rigid Cell Filter is the ideal solution to IAQ problems that demand a high efficiency, long lasting rigid filter without costly modification to existing equipment. The secure, superior performance of this filter helps reduce costly maintenance. The rigid cell filter can withstand many unfavorable conditions,especially variable air volume.
Applications
The Rigid Cell Filter can be used in place of many high efficiency filters. This filter may be used in spaces requiring 6" or 11" filters and is suited for use in most commercial and industrial HVAC systems. The Rigid Cell Filter can upgrade your current systems by providing exceptional filter integrity and consistent performance. The Rigid Cell Filter can be used as a pre-filter for higher efficiency products or a final filter in VAC systems that require a high level of efficiency and cleanliness. The rigid cell filter is designed for ease of installation in either side access systems or built-up banks. It is available in traditional box style or single header versions.
Description
The Rigid Cell Filter is a rigid, extended surface, medium to high efficiency filter. Superior performance in high humidity
applications combined with the elimination of media fiber
shedding make this filter a smart choice over traditional fiberglass high efficiency products. Its high loft ultra fine synthetic media provides excellent dust holding capacity and coupled with its rigid construction virtually eliminates dust particle unloading downstream of the filter. A galvanized steel frame, diagonal support bracing, moisture resistant media contour stabilizers and metal media support grid enhance the durability of the filter.This durability eliminates media oscillation and media pull-away.
The media of the filter is adhesively bonded to all four sides of the frame to eliminate air bypass. The Rigid Cell Filter is available in ASHRAE 40-45%, 60-65%, 80-85% and 90-95% efficiency.
