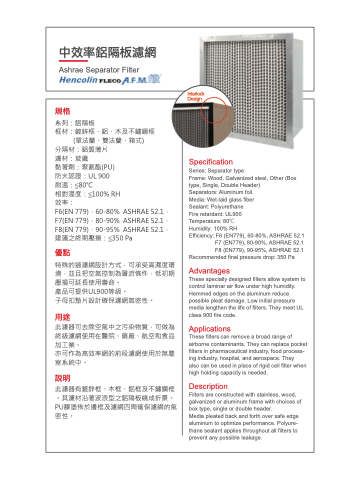

中效率鋁隔板濾網
Ashrae Separator Filter
規格
系列:鋁隔板
框材:鍍鋅框、鋁、木及不鏽鋼框
(單法蘭、雙法蘭、箱式) 分隔材:鋁質薄片
濾材:玻纖 黏著劑:聚氨酯(PU) 防火認證:UL 900 耐溫:≦80°C 相對溼度:≦100% RH 效率:
F6(EN 779)，60-80% ASHRAE 52.1， F7(EN 779)，80-90% ASHRAE 52.1， F8(EN 779)，90-95% ASHRAE 52.1， 建議之終期壓損:≦350 Pa
優點
特殊的過濾網設計方式，可承受高濕度環 境，並且把空氣控制為層流條件，低初期 壓損可延長使用壽命。 產品可提供UL900等級。 子母扣墊片設計確保濾網氣密性。
用途
此濾器可去除空氣中之污染物質，可做為
終級濾網使用在醫院、藥廠、航空和食品
加工業。
亦可作為高效率網的前段濾網使用於無塵
室系統中。
說明
Interlock Design
Specification
Series: Separator type
Frame: Wood, Galvanized steel, Other (Box type, Single, Double Header)
Separators: Aluminum foil.
Media: Wet-laid glass fiber
Sealant: Polyurethane
Fire retardant: UL900
Temperature: 80°C
Humidity: 100% RH
Efficiency: F6 (EN779), 60-80%, ASHRAE 52.1
F7 (EN779), 80-90%, ASHRAE 52.1
F8 (EN779), 90-95%, ASHRAE 52.1 Recommended final pressure drop: 350 Pa
Advantages
These specially designed filters allow system to control laminar air flow under high humidity. Hemmed edges on the aluminum reduce possible pleat damage. Low initial pressure media lengthen the life of filters. They meet UL class 900 fire code.
Applications
These filters can remove a broad range of airborne contaminants. They can replace pocket filters in pharmaceutical industry, food process- ing industry, hospital, and aerospace. They
also can be used in place of rigid cell filter when high holding capacity is needed.
Description
Filters are constructed with stainless, wood, galvanized or aluminum frame with choices of box type, single or double header.
Media pleated back and forth over safe edge aluminum to optimize performance. Polyure- thane sealant applies throughout all filters to prevent any possible leakage.
此濾器有鍍鋅框、木框、鋁框及不鏽鋼框 。其濾材沿著波浪型之鋁隔板繞成折景。 PU膠塗佈於邊框及濾網四周確保濾網的氣 密性。
