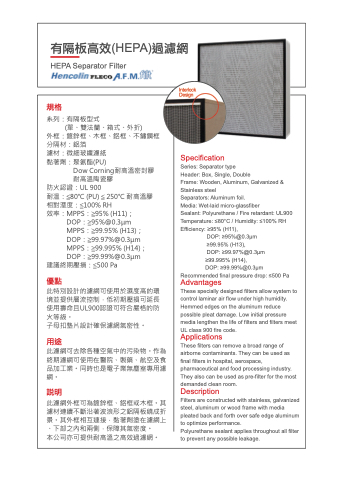

有隔板高效(HEPA)過濾網 HEPA Separator Filter
規格
系列:有隔板型式 (單、雙法蘭、箱式、外折)
外框:鍍鋅框、木框、鋁框、不鏽鋼框 分隔材:鋁箔
濾材:微細玻纖濾紙 黏著劑:聚氨酯(PU)
Dow Corning耐高溫密封膠
耐高溫陶瓷膠 防火認證:UL 900
耐溫:≦80°C (PU) ≦ 250°C 耐高溫膠 相對溼度:≦100% RH 效率:MPPS:≧95% (H11);
DOP:≧95%@0.3μm MPPS:≧99.95% (H13); DOP:≧99.97%@0.3μm MPPS:≧99.995% (H14); DOP:≧99.99%@0.3μm
建議終期壓損:≦500 Pa
優點
此特別設計的濾網可使用於濕度高的環 境並提供層流控制，低初期壓損可延長 使用壽命且UL900認證可符合嚴格的防 火等級。 子母扣墊片設計確保濾網氣密性。
用途
此濾網可去除各種空氣中的污染物。作為
終期濾網可使用在醫院、製藥、航空及食
品加工業。同時也是電子業無塵室專用濾
網。
說明
此濾網外框可為鍍鋅框、鋁框或木框。其
濾材連續不斷沿著波浪形之鋁隔板繞成折
景。其外框相互連接，黏著劑塗在濾網上
、下部之內和兩側，保障其氣密度。
本公司亦可提供耐高溫之高效過濾網。
Interlock Design
Specification
Series: Separator type
Header: Box, Single, Double
Frame: Wooden, Aluminum, Galvanized & Stainless steel
Separators: Aluminum foil.
Media: Wet-laid micro-glassfiber
Sealant: Polyurethane / Fire retardant: UL900 Temperature: ≤80°C / Humidity: ≤100% RH Efficiency: ≥95% (H11),
DOP: ≥95%@0.3μm ≥99.95% (H13),
DOP: ≥99.97%@0.3μm
≥99.995% (H14),
DOP: ≥99.99%@0.3μm Recommended final pressure drop: ≤500 Pa Advantages
These specially designed filters allow system to control laminar air flow under high humidity. Hemmed edges on the aluminum reduce possible pleat damage. Low initial pressure media lengthen the life of filters and filters meet UL class 900 fire code.
Applications
These filters can remove a broad range of airborne contaminants. They can be used as final filters in hospital, aerospace, pharmaceutical and food processing industry. They also can be used as pre-filter for the most demanded clean room.
Description
Filters are constructed with stainless, galvanized steel, aluminum or wood frame with media pleated back and forth over safe edge aluminum to optimize performance.
Polyurethane sealant applies throughout all filter to prevent any possible leakage.
