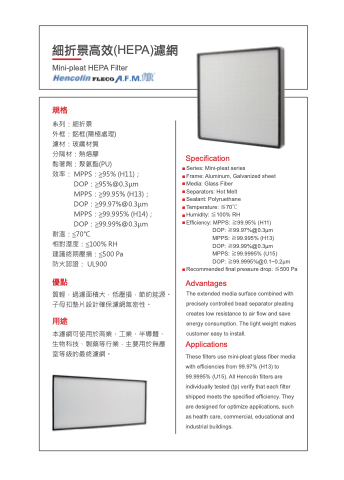

細折景高效(HEPA)濾網 Mini-pleat HEPA Filter
規格
系列:細折景 外框:鋁框(陽極處理) 濾材:玻纖材質
分隔材:熱熔膠 .Specification
.Series: Mini-pleat series
.Frame: Aluminum, Galvanized sheet
DOP:≧95%@0.3μm .
.Separators: Hot Melt .Sealant: Polyruethane Temperature: ≦70°C
Humidity: ≦100% RH
Efficiency: MPPS: ≧99.95% (H11)
黏著劑:聚氨酯(PU)
效率: MPPS:≧95% (H11);
MPPS:≧99.95% (H13); DOP:≧99.97%@0.3μm MPPS:≧99.995% (H14); DOP:≧99.99%@0.3μm
耐溫:≦70°C
相對溼度:≦100% RH
建議終期壓損:≦500 Pa . 防火認證: UL900
優點
質輕，過濾面積大，低壓損，節約能源。
子母扣墊片設計確保濾網氣密性。
用途
本濾網可使用於商業、工業、半導體、
生物科技、製藥等行業，主要用於無塵
室等級的最終濾網。
DOP: ≧99.97%@0.3μm MPPS: ≧99.995% (H13)
DOP: ≧99.99%@0.3μm MPPS: ≧99.9995% (U15) DOP: ≧99.9995%@0.1~0.2μm
Recommended final pressure drop: ≦500 Pa
Advantages
The extended media surface combined with precisely controlled bead separator pleating creates low resistance to air flow and save energy consumption. The light weight makes customer easy to install.
Applications
These filters use mini-pleat glass fiber media with efficiencies from 99.97% (H13) to 99.9995% (U15). All Hencolin filters are individually tested (tp) verify that each filter shipped meets the specified efficiency. They are designed for optimize applications, such as health care, commercial, educational and industrial buildings.
Media: Glass Fiber
