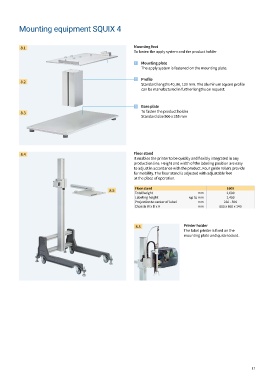

Mounting equipment SQUIX 4

8.1 Mounting foot
To fasten the apply system and the product holder

1 Mounting plate
The apply system is fastened on the mounting plate.

2 Profile
8.2
Standard lengths 40, 80, 120 mm. The aluminum square profile
can be manufactured in further lengths on request.

3 Base plate
8.3 To fasten the product holder
Standard size 500 x 255 mm

8.4 Floor stand
It enables the printer to be quickly and flexibly integrated in any
production line. Height and width of the labeling position are easy
to adjust in accordance with the product. Four guide rollers provide
for mobility. The floor stand is adjusted with adjustable feet
at the place of operation.

8.5 Floor stand 1600
Total height mm 1,600
Labeling height up to mm 1,400
Projection to center of label mm 230 - 500
Chassis W x D x H mm 600 x 860 x 140

8.5 Printer holder
The label printer is fixed on the
mounting plate and quick-locked.
