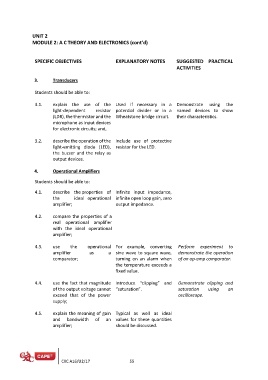

UNIT 2
               MODULE 2: A C THEORY AND ELECTRONICS (cont’d)


                SPECIFIC OBJECTIVES                 EXPLANATORY NOTES          SUGGESTED  PRACTICAL
                                                                               ACTIVITIES

                3.       Transducers

                Students should be able to:

                3.1.     explain   the   use   of   the    Used  if  necessary  in  a  Demonstrate   using   the
                         light-dependent    resistor  potential  divider  or  in  a  named  devices  to  show
                         (LDR), the thermistor and the  Wheatstone bridge circuit.   their characteristics.
                         microphone as input devices
                         for electronic circuits; and,

                3.2.     describe the operation of the  Include  use  of  protective
                         light-emitting  diode  (LED),  resistor for the LED.
                         the  buzzer  and  the  relay as
                         output devices.

                4.       Operational Amplifiers

                Students should be able to:

                4.1.     describe    the properties    of    Infinite  input  impedance,
                         the        ideal  operational  infinite open loop gain, zero
                         amplifier;                 output impedance.

                4.2.     compare the properties of a
                         real  operational  amplifier
                         with  the  ideal  operational
                         amplifier;

                4.3.     use        the        operational     For  example,  converting   Perform  experiment  to
                         amplifier          as        a  sine wave to square wave,   demonstrate the operation
                         comparator;                turning  on  an  alarm  when   of an op-amp comparator.
                                                    the temperature exceeds a
                                                    fixed value.

                4.4.     use the fact that magnitude  Introduce  “clipping”  and   Demonstrate  clipping  and
                         of the output voltage cannot  “saturation”.            saturation   using    an
                         exceed  that  of  the  power                           oscilloscope.
                         supply;

                4.5.     explain the meaning of gain  Typical  as  well  as  ideal
                         and   bandwidth   of   an  values  for  these  quantities
                         amplifier;                 should be discussed.







                            CXC A16/U2/17                  55
