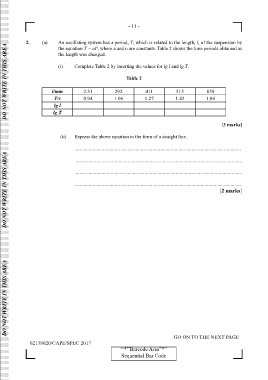

2. (a) An oscillating system has a period, T, which is related to the length, l, of the suspension by
the equation T = al , where a and n are constants. Table 2 shows the time periods obtained as
n
the length was changed.
(i) Complete Table 2 by inserting the values for lg l and lg T.
Table 2
l/mm 2.31 292 411 515 859
T/s 0.94 1.06 1.27 1.42 1.86
lg l
lg T
[3 marks]
DO NOT WRITE IN THIS AREA
(ii) Express the above equation in the form of a straight line.
................................................................................................................................
................................................................................................................................
................................................................................................................................
................................................................................................................................
[2 marks]
