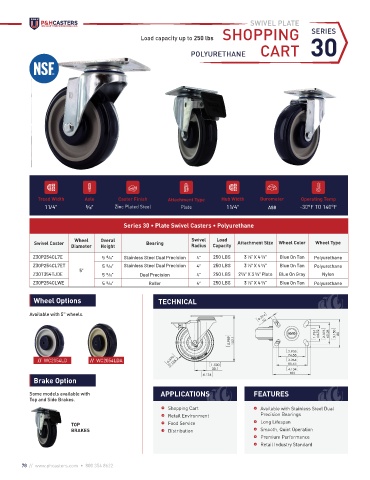

Page 78 - P&H Casters
P. 78
SWIVEL PLATE
SHOPPING SERIES
Load capacity up to 250 lbs
POLYURETHANE CART
Tread Width Axle Caster Finish Attachment Type Hub Width Durometer Operating Temp
1 1/4” 5/16” Zinc Plated Steel Plate 1 1/4” A98 -30°F TO 140°F
Series 30 • Plate Swivel Casters • Polyurethane
Wheel Overal Swivel Load
Swivel Caster Bearing Attachment Size Wheel Color Wheel Type
Diameter Height Radius Capacity
Z30P254CL7E 5 13/16” Stainless Steel Dual Precision 4” 250 LBS 3 1/8” X 4 1/8” Blue On Tan Polyurethane
Z30P254CL7ET 5 13/16” Stainless Steel Dual Precision 4” 250 LBS 3 1/8” X 4 1/8” Blue On Tan Polyurethane
Z30T354TJDE 5” 5 13/16” Dual Precision 4” 250 LBS 23/8” X 3 5/8” Plate Blue On Gray Nylon
Z30P254CLWE 5 13/16” Roller 4” 250 LBS 3 1/8” X 4 1/8” Blue On Tan Polyurethane
Wheel Options TECHNICAL
Available with 5" wheels.
// WC2054LD // WC2054LDA
Brake Option
Some models available with APPLICATIONS FEATURES
Top and Side Brakes.
R Shopping Cart R Available with Stainless Steel Dual
R Retail Environment Precision Bearings
TOP R Food Service R Long Lifespan
BRAKES R Distribution R Smooth, Quiet Operation
R Premium Performance
R Retail Industry Standard
78 // www.phcasters.com • 800 354 8622
