CELLING EXAUST FAN
louvre
DUCTED WALL MOUNTED
RANGE HOOD

North Elevation CELLING EXAUST FAN
150 CFM
441.80 m 2
KIDS ROOM STORE CELLING EXAUST FAN
60 CFM
DUCTED WALL MOUNTED
RANGE HOOD LIVING DIRTY KITCHEN GENTLES MAJLIS
150 CFM
West Elevation West Elevation CELLING EXAUST FAN BATH ENTRANCE ENTRANCE H.WASH BATH 12 13 East Elevation CELLING EXAUST FAN
50 CFM
50 CFM
DINING 10 11 9 8 7 14 15 16 17 18
CELLING EXAUST FAN BATH MASTER BED ROOM 25R x 0.16 24G x 0.28 6 5 19 20 21
50 CFM 4 22
3 23
2 24
1
UP 25
DIST. DOWN
CELLING EXAUST FAN
50 CFM BATH
DINING ELEV.
MASTER BED ROOM H.WASH
ENTRANCE ENTRANCE
CELLING EXAUST FAN CELLING EXAUST FAN
BATH
50 CFM BATH 50 CFM
DUCTED WALL MOUNTED
KIDS ROOM STORE CELLING EXAUST FAN
RANGE HOOD LIVING GENTLES MAJLIS
150 CFM DIRTY KITCHEN
60 CFM
South Elevation CELLING EXAUST FAN
150 CFM

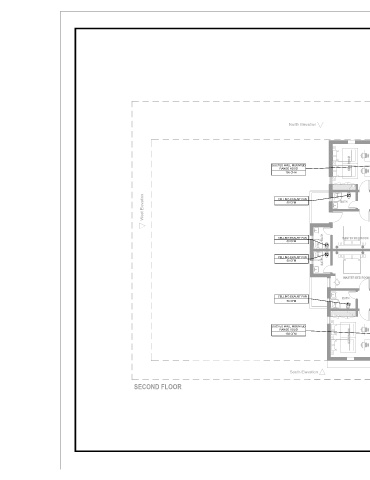

SECOND FLOOR
A 3
M 0 1 4
