P. 525
UNDERGROUND MASONARY SEPTIC TANK
CAPACITY = 3.10*5.10*3.5 m³
UNDER GROUND R.C.C
WATER TANK
CAPACITY=6.60*2.80*3 m³
PROJECT NAME:
OWNER:
CITY:
LOT No. BLOCK No.
SHEET TITLE:

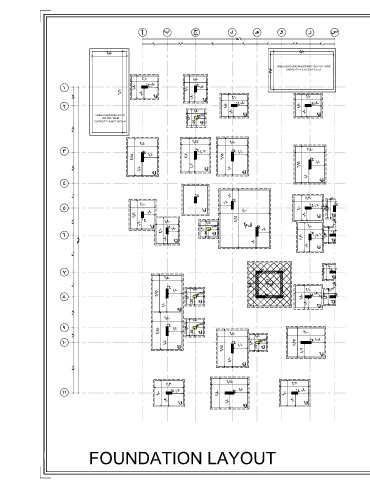

FOUNDATION LAYOUT
SCALE:
NET ALLOWABLE BEARING CAPACITY FOR Footing
Width of Footing Net Allowable Bearing Pressure Modulus of sub-grade
PROJECT No.
Footing 155 kN/m2
ARCHITECT: STRU ENG:
ELEC. ENG. : CHECKED BY:
ALL FOOTINGS WERE DESIGNED TO
CARRY G + 1 + ROOF SHEET No : DATE:
S 0 4 FEB - 2022
FOUNDATION LAYOUT S 0 4
