SCHEDULE OF COLUMNS
FLOOR

REMARKS
PENTHOUSE FLOOR TO ROOF LEVEL 20 X 50 20 X 65 20 X 85

SIZE (Cm)
MAIN REN.
2Ø10 @ 200 ( TIES )
2Ø10 @ 200 ( TIES )
TIES 8Ø16 ( Vert . Bars ) 10Ø16 ( Vert . Bars ) 14Ø16 ( Vert . Bars )
2Ø10 @ 200 ( TIES )
FIRST FLOOR TO PENTHOUSE FLOOR LEVEL SIZE (Cm) 8Ø16 ( Vert . Bars ) 10Ø16 ( Vert . Bars ) 12Ø16 ( Vert . Bars ) 14Ø16 ( Vert . Bars ) Increase number of links within the top and bottom zone of the column height
Ø8@10C/C
SLAB
20 X 65
20 X 50
20 X 75
20 X 85
MAIN REN.
2Ø10 @ 200 ( TIES )
2Ø10 @ 200 ( TIES )
2Ø10 @ 200 ( TIES )
TIES
2Ø10 @ 200 ( TIES )
Ø8@15C/C
GROUND FLOOR TO FIRST FLOOR LEVEL Tie beam Tie beam PROJECT NAME: BLOCK No.
COLUMN
OWNER:
Ø8@10C/C
CITY:
NOTE:
LOT No.
height
SIZE (Cm)
20 X 75
20 X 85
20 X 65
20 X 50
SHEET TITLE:
MAIN REN.
Ø8@10C/C
14Ø16 ( Vert . Bars )
8Ø16 ( Vert . Bars ) 10Ø16 ( Vert . Bars )
12Ø16 ( Vert . Bars )

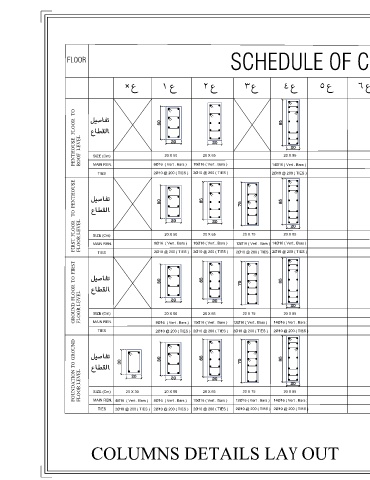

COLUMNS DETAILS LAYOUT
TIES 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES )
SCALE:
FOUNDATION TO GROUND FLOOR LEVEL ARCHITECT: STRU ENG:
PROJECT No.
Column Stirrups details
CHECKED BY:
ELEC. ENG. :
20 X 75
SIZE (Cm)
20 X 50
20 X 65
20 X 85
20 X 30
SHEET No :
14Ø16 ( Vert . Bars )
8Ø16 ( Vert . Bars )
12Ø16 ( Vert . Bars )
10Ø16 ( Vert . Bars )
MAIN REN. 4Ø16 ( Vert . Bars )
S 1 5 DATE: FEB - 2022
TIES 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES ) 2Ø10 @ 200 ( TIES )
COLUMNS DETAILS LAYOUT S 1 5
