( SBC 1101 )

PROJECT NAME:
OWNER:
CITY:
LOT No. BLOCK No.
SHEET TITLE:

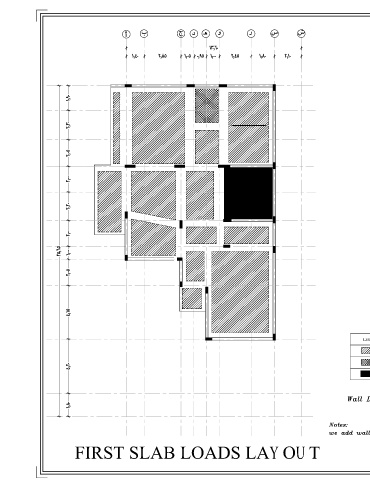

FIRST SLAB LOADS LAYOUT
FINISHING SERVICES & HORDI BLOCK PARTITION SCALE:
LEGENO (TON/M2) CEILING(TON/M2) (TON/M2) (TON/M2) L.L (TON/M2) TOT SDL
0.20 0.05 0.20 0 0.20 0.45 PROJECT No.
0.58 0.05 0 0 0.20 0.63
ARCHITECT: STRU ENG:
0.30 0 0 0 0.50 0.30
ELEC. ENG. : CHECKED BY:
SHEET No : DATE:
S 0 1 1 JAN- 2021

FIRST SLAB LOADS LAYOUT
S 1 1
