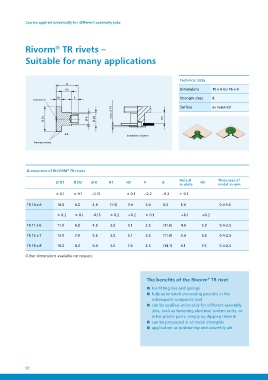

Page 92 - BlueFastening-Systems_Brochure_07192017

Can be applied universally for different assembly jobs

Rivorm® TR rivets –
Suitable for many applications

Indentation G Technical data 10 x 6 bis 16 x 8
H2 Dimensions 8
Strength class as required
H1 F Surface

Ø D1
ØK
Ø D2

max. 0.75
H3

Z

AA Installation situation

Pressing contour

Dimensions of RIVORM® TR rivets

Ø D1 Ø D2 ØK H1 H2 F G Hole Ø H3 Thickness of
- 0.2 - 0.2 in plate metal in mm
± 0.1 ± 0.1 - 0.15 ± 0.1 + 0.1
0.4-1.5
TR 10 x 6 10.0 6.0 4.9 (1.5) 3.0 2.0 6.5 5.0
0.4-2.5
± 0.2 ± 0.1 -0.15 ± 0.2 +0.2 ± 0.1 +0.1 +0.2 0.4-2.5
0.4-2.5
TR 11 x 6 11.0 6.0 4.5 3.0 5.1 3.5 (11.6) 4.6 5.0

TR 13 x 7 13.0 7.0 5.5 3.0 5.1 3.5 (11.6) 5.6 5.0

TR 16 x 8 16.0 8.0 6.0 3.0 7.6 3.5 (14.1) 6.1 7.5

Other dimensions available on request.

The benefits of the Rivorm® TR rivet

for fitting ties and springs
fully automated processing possible in the
subsequent composite tool
can be applied universally for different assembly
jobs, such as fastening electrical control units, or
other plastic parts, simply by clipping them in
can be processed in all metal strengths
application as positioning and assembly aid
