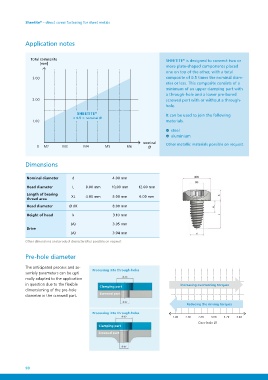

Page 98 - BlueFastening-Systems_Brochure_07192017

Sheetite® – direct screw fastening for sheet metals

Application notes

Total composite SHEETITE® is designed to connect two or
[mm] more plate-shaped components placed
one on top of the other, with a total
3.00 composite of 0.5 times the nominal diam-
eter or less. This composite consists of a
2.00 minimum of an upper clamping part with
1.00 a through-hole and a lower pre-bored
screwed part with or without a through-
hole.

SHEETITE® It can be used to join the following
materials.
< 0.5 × nominal Ø

steel
aluminium

0 M2 M3 M4 M5 M6 nominal Other metallic materials possible on request.
Ø

Dimensions

Nominal diameter d 4.00 mm

Head diameter L 8.00 mm 10,00 mm 12.00 mm
XL 4.00 mm 5.00 mm 6.00 mm
Length of bearing Ø dK 8.00 mm
thread area

Head diameter

Height of head k 3.10 mm

Drive (A) 3.95 mm
(A) 3.94 mm

Other dimensions and product characteristics possible on request

Pre-hole diameter Processing into through-holes Increasing overturning torques

The anticipated process and as- Clamping part
sembly parameters can be opti- Screwed part
mally adapted to the application
in question due to the flexible
dimensioning of the pre-hole
diameter in the screwed part.

Reducing the driving torques

Processing into through-holes 2.40 2.60 2.80 3.00 3.20 3.40

Clamping part Core hole Ø
Screwed part
