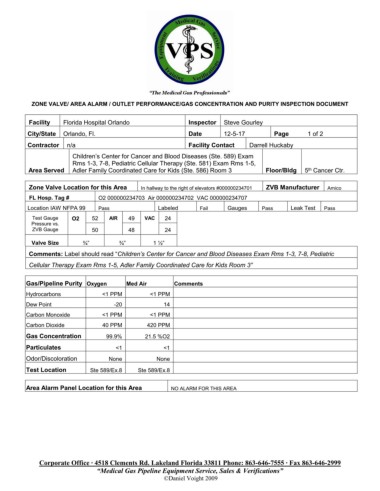

ZONE VALVE/ AREA ALARM / OUTLET PERFORMANCE/GAS CONCENTRATION AND PURITY INSPECTION DOCUMENT

Facility Florida Hospital Orlando Inspector Steve Gourley
City/State Orlando, Fl. Date 12-5-17 Page 1 of 2
Contractor n/a Facility Contact Darrell Huckaby

Children’s Center for Cancer and Blood Diseases (Ste. 589) Exam
Rms 1-3, 7-8, Pediatric Cellular Therapy (Ste. 581) Exam Rms 1-5,
th
Area Served Adler Family Coordinated Care for Kids (Ste. 586) Room 3 Floor/Bldg 5 Cancer Ctr.

Zone Valve Location for this Area In hallway to the right of elevators #000000234701 ZVB Manufacturer Amico
FL Hosp. Tag # O2 000000234703 Air 000000234702 VAC 000000234707
Location IAW NFPA 99 Pass Labeled Fail Gauges Pass Leak Test Pass
Test Gauge O2 52 AIR 49 VAC 24
Pressure vs.
ZVB Gauge 50 48 24
Valve Size ¾” ¾” 1 ½”
Comments: Label should read “Children’s Center for Cancer and Blood Diseases Exam Rms 1-3, 7-8, Pediatric

Cellular Therapy Exam Rms 1-5, Adler Family Coordinated Care for Kids Room 3”

Gas/Pipeline Purity Oxygen Med Air Comments
Hydrocarbons <1 PPM <1 PPM
Dew Point -20 14
Carbon Monoxide <1 PPM <1 PPM
Carbon Dioxide 40 PPM 420 PPM
Gas Concentration 99.9% 21.5 %O2
Particulates <1 <1

Odor/Discoloration None None
Test Location Ste 589/Ex.8 Ste 589/Ex.8

Area Alarm Panel Location for this Area NO ALARM FOR THIS AREA
