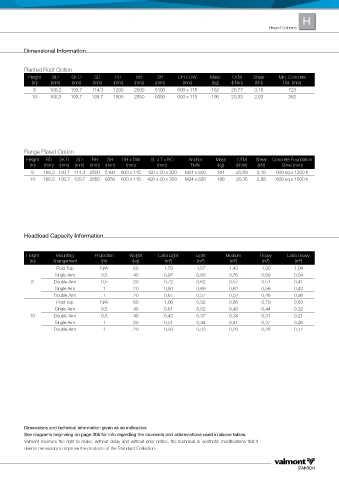

Page 159 - UK Standard Products Catalogue 2018_23.10.18

H

Hinged Columns

Dimensional Information

Planted Root Option
Height BD SK D SD PD BH SH DH x DW Mass OTM Shear Min. Concrete
(m) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg) (kNm) (kN) Dia. (mm)
8 168,3 193,7 114,3 1200 2500 5180 600 x 115 162 20,77 3,16 723
10 168,3 193,7 139,7 1500 2850 6850 600 x 115 190 20,33 2,83 362

Flange Plated Option
Height BD SK D SD BH SH DH x DW SL x T x BC Anchor Mass OTM Shear Concrete Foundation
(m) (mm) (mm) (mm) (mm) (mm) (mm) (mm) Bolts (kg) (kNm) (kN) Sizes (mm)
8 168,3 193,7 114,3 2500 5180 600 x 115 420 x 20 x 300 M24 x 820 164 20,59 3,19 600 sq x 1200 h
10 168,3 193,7 139,7 2850 6850 600 x 115 420 x 20 x 300 M24 x 820 186 20,35 2,88 600 sq x 1500 h

Headload Capacity Information

Height Mounting Projection Weight Extra Light Light Medium Heavy Extra Heavy
(m) Arrangement (m) (kg) (m ) 2 (m ) 2 (m ) 2 (m ) 2 (m ) 2
Post Top N/A 60 1,79 1,57 1,43 1,30 1,04
Single Arm 0,5 40 0,97 0,83 0,76 0,69 0,54
8 Double Arm 0,5 20 0,72 0,62 0,57 0,51 0,41
Single Arm 1 20 0,80 0,69 0,62 0,56 0,43
Double Arm 1 20 0,67 0,57 0,52 0,46 0,36
Post Top N/A 60 1,06 0,92 0,85 0,79 0,59
Single Arm 0,5 40 0,61 0,52 0,48 0,44 0,32
10 Double Arm 0,5 40 0,42 0,37 0,34 0,31 0,21
Single Arm 1 20 0,51 0,44 0,41 0,37 0,26
Double Arm 1 20 0,39 0,33 0,29 0,26 0,17

Dimensions and technical information given as an indication.
See diagrams beginning on page 308 for info regarding the moments and abbreviations used in above tables.
Valmont reserves the right to make, without delay and without prior notice, the technical or aesthetic modifications that it
deems necessary to improve the products of the Standard Collection.
