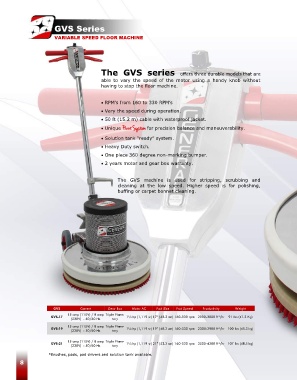

GVS Series
VARIABLE SPEED FLOOR MACHINE

The GVS series offers three durable models that are
able to vary the speed of the motor using a handy knob without
having to stop the floor machine.

 RPM’s from 160 to 330 RPM’s
 Vary the speed during operation.

 50 ft (15.2 m) cable with waterproof jacket.
 Unique Pivot System for precision balance and maneuverability.

 Solution tank “ready” system.
 Heavy Duty switch.
 One piece 360 degree non-marking bumper.

 2 years motor and gear box warranty.

The GVS machine is used for stripping, scrubbing and
cleaning at the low speed. Higher speed is for polishing,
buffing or carpet bonnet cleaning.

GVS Current Gear Box Motor AC Pad Size Pad Speed Productivity Weight
15 amp (115V) / 8 amp Triple Plane-
GVS-17 1½ hp (1,119 w) 17” (43.2 cm) 160-330 rpm 2000-3000 ft²/hr 91 lbs (41.3 Kg)
(230V) - 50/60 Hz tary
15 amp (115V) / 8 amp Triple Plane-
GVS-19 1½ hp (1,119 w) 19” (48.2 cm) 160-330 rpm 2300-3900 ft²/hr 100 lbs (45.3 kg)
(230V) - 50/60 Hz tary
15 amp (115V) / 8 amp Triple Plane-
GVS-21 1½ hp (1,119 w) 21” (53.3 cm) 160-330 rpm 2500-4300 ft²/hr 107 lbs (48.5 kg)
(230V) - 50/60 Hz tary
Contact us for more information or to place your order:
*Brushes, pads, pad drivers and solution tank available.
