Page 13 - Automated Sanitising Equipment Proposal

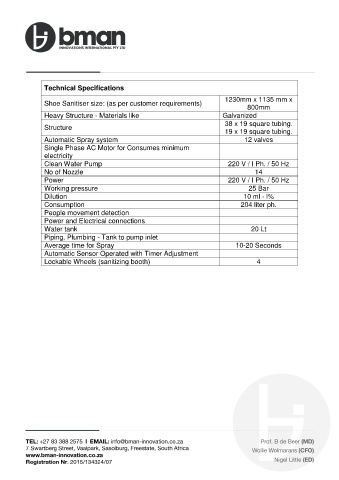

Technical Specifications

1230mm x 1135 mm x
Shoe Sanitiser size: (as per customer requirements)
800mm
Heavy Structure - Materials like Galvanized
38 x 19 square tubing.
Structure
19 x 19 square tubing.
Automatic Spray system 12 valves
Single Phase AC Motor for Consumes minimum
electricity
Clean Water Pump 220 V / I Ph. / 50 Hz
No of Nozzle 14
Power 220 V / I Ph. / 50 Hz
Working pressure 25 Bar
Dilution 10 ml - l%
Consumption 204 liter ph.
People movement detection
Power and Electrical connections
Water tank 20 Lt
Piping, Plumbing - Tank to pump inlet
Average time for Spray 10-20 Seconds
Automatic Sensor Operated with Timer Adjustment
Lockable Wheels (sanitizing booth) 4
