Page 5 - Shoe Sanitiser
P. 5

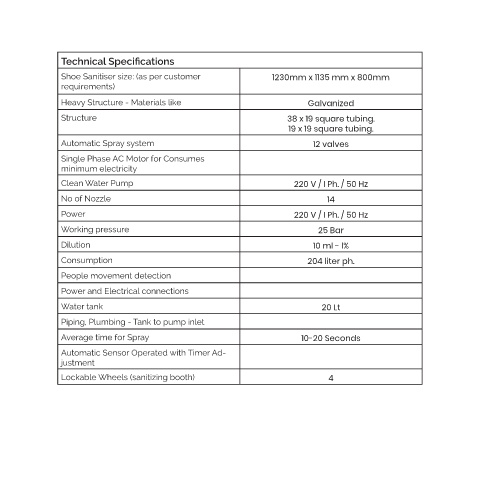

Technical Specifications
Shoe Sanitiser size: (as per customer 1230mm x 1135 mm x 800mm
requirements)
Heavy Structure - Materials like Galvanized
Structure 38 x 19 square tubing.
19 x 19 square tubing.
Automatic Spray system 12 valves
Single Phase AC Motor for Consumes
minimum electricity
Clean Water Pump 220 V / I Ph. / 50 Hz
No of Nozzle 14
Power 220 V / I Ph. / 50 Hz
Working pressure 25 Bar
Dilution 10 ml - l%
Consumption 204 liter ph.
People movement detection
Power and Electrical connections
Water tank 20 Lt
Piping, Plumbing - Tank to pump inlet
Average time for Spray 10-20 Seconds
Automatic Sensor Operated with Timer Ad-
justment
Lockable Wheels (sanitizing booth) 4
