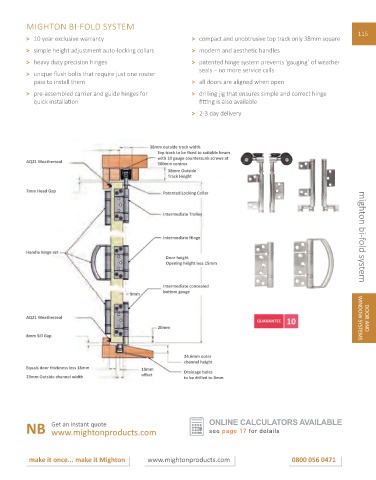

MIGHTON BI-FOLD SYSTEM
115
> 10 year exclusive warranty > compact and unobtrusive top track only 38mm square
> simple height adjustment auto-locking collars > modern and aestheti c handles
> heavy duty precision hinges > patented hinge system prevents ‘gauging’ of weather
seals – no more service calls
> unique fl ush bolts that require just one router
pass to install them > all doors are aligned when open
> pre-assembled carrier and guide hinges for > drilling jig that ensures simple and correct hinge
quick installati on fi tti ng is also available
> 2-3 day delivery
38mm outside track width
Top track to be fi xed to suitable beam
with 10 gauge countersunk screws at
AQ21 Weatherseal 300mm centres
38mm Outside
Track Height
7mm Head Gap Patented Locking Collar
Intermediate Trolley
Intermediate Hinge mighton bi-fold system
Handle hinge set
Door height
Opening height less 15mm
Intermediate concealed
9mm bott om gauge
AQ21 Weatherseal WINDOW SYSTEMS DOOR AND
20mm
8mm Sill Gap
24.6mm outer
channel height
Equals door thickness less 18mm 19mm Drainage holes
23mm Outside channel width off set to be drilled to 8mm
NB Get an instant quote ONLINE CALCULATORS AVAILABLE
www.mightonproducts.com
see page 17 for details
