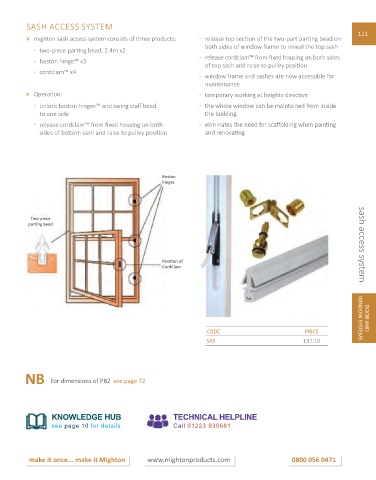

SASH ACCESS SYSTEM
121
> mighton sash access system consists of three products: - release top section of the two-part parting bead on
both sides of window frame to reveal the top sash
- two-piece parting bead, 2.4m x2
- release cordclam™ from fixed housing on both sides
- boston hinge™ x3
of top sash and raise to pulley position
- cordclam™ x4
- window frame and sashes are now accessible for
maintenance
> Operation: - temporary working at heights directive
- unlock boston hinges™ and swing staff bead - the whole window can be maintained from inside
to one side the building
- release cordclam™ from fixed housing on both - eliminates the need for scaffolding when painting
sides of bottom sash and raise to pulley position and renovating

Boston
hinges

Two-piece
parting bead

Position of sash access system
CordClam

CODE PRICE WINDOW SYSTEMS DOOR AND
SAS £37.10

NB For dimensions of PB2 see page 72
