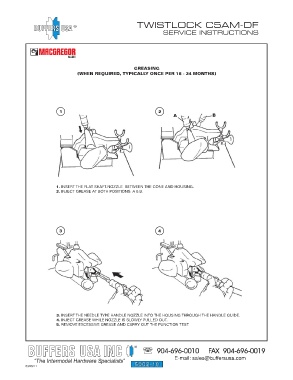

® ® TWISTLOCK C5AM-DF
SERVICE INSTRUCTIONS
GREASING
(WHEN REQUIRED, TYPICALLY ONCE PER 18 - 24 MONTHS)
1 2
A B
1. INSERT THE FLAT SHAFT-NOZZLE BETWEEN THE CONE AND HOUSING.
2. INJECT GREASE AT BOTH POSITIONS: A & B.
3 4
3. INSERT THE NEEDLE TYPE HANDLE NOZZLE INTO THE HOUSING THROUGH THE HANDLE GUIDE.
4. INJECT GREASE WHILE NOZZLE IS SLOWLY PULLED OUT.
5. REMOVE EXCESSIVE GREASE AND CARRY OUT THE FUNCTION TEST.
®
