Page 88 - 2017 Lashing Catalog Web_Neat
P. 88

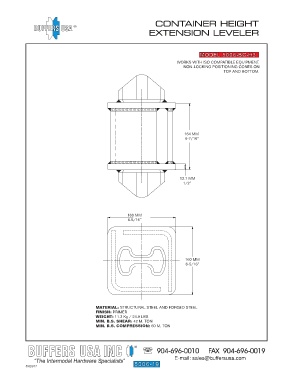

CONTAINER HEIGHT
®
EXTENSION LEVELER
MODEL 5006-BC-H3
WORKS WITH ISO COMPATIBLE EQUIPMENT.
NON-LOCKING POSITIONING CONES ON
TOP AND BOTTOM.
164 MM
6-7/16"
12.7 MM
1/2”
160 MM
6-5/16”
160 MM
6-5/16”
MATERIAL: STRUCTURAL STEEL AND FORGED STEEL
FINISH: PRIMER
WEIGHT: 11.3 Kg / 24.9 LBS
MIN. B.S. SHEAR: 42 M. TON
MIN. B.S. COMPRESSION: 60 M. TON
®
904-696-0010 FAX 904-696-0019
E-mail: sales@buffersusa.com
5006-19
09/28/17
