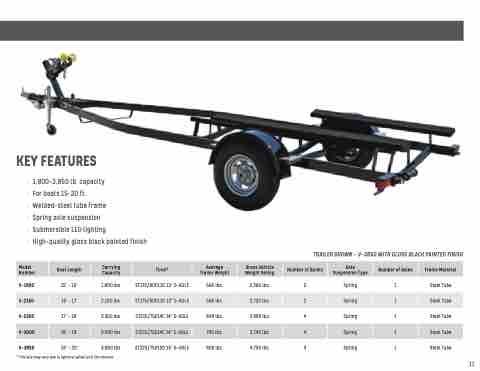

Page 11 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 1,800-3,850 lb. capacity
• For boats 15-20 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish
TRAILER SHOWN — V-3850 WITH GLOSS BLACK PAINTED FINISH
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
V-1800
15' - 16'
1,800 lbs.
ST175/80D13C 13" 5-HOLE
560 lbs.
2,360 lbs.
2
Spring
1
Steel Tube
V-2160
16' - 17'
2,160 lbs.
ST175/80D13C 13" 5-HOLE
560 lbs.
2,720 lbs.
2
Spring
1
Steel Tube
V-2350
17' - 18'
2,350 lbs.
ST215/75D14C 14" 5-HOLE
649 lbs.
2,999 lbs.
4
Spring
1
Steel Tube
V-3000
18' - 19'
3,000 lbs.
ST215/75D14C 14" 5-HOLE
740 lbs.
3,740 lbs.
4
Spring
1
Steel Tube
V-3850
19' - 20'
3,850 lbs.
ST225/75D15D 15" 6-HOLE
900 lbs.
4,750 lbs.
4
Spring
1
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
11
