Page 13 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 4,200-5,200 lb. capacity
• For boats 20-23 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish

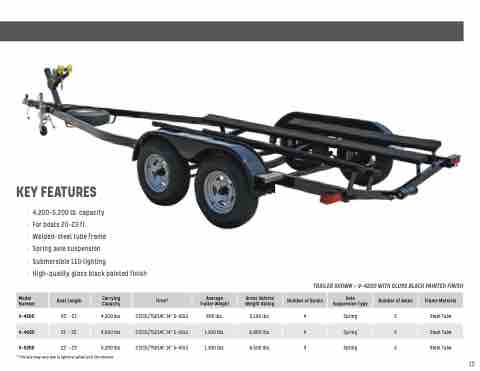

TRAILER SHOWN — V-4200 WITH GLOSS BLACK PAINTED FINISH
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
V-4200
20' - 21'
4,200 lbs.
ST215/75D14C 14" 5-HOLE
900 lbs.
5,100 lbs.
4
Spring
2
Steel Tube
V-4600
21' - 22'
4,600 lbs.
ST215/75D14C 14" 5-HOLE
1,200 lbs.
5,800 lbs.
4
Spring
2
Steel Tube
V-5200
22' - 23'
5,200 lbs.
ST215/75D14C 14" 5-HOLE
1,300 lbs.
6,500 lbs.
4
Spring
2
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
13
