Page 15 - EZ Loader Welded Frame Brochure Version 1
P. 15
KEY FEATURES
• 5,800-7,900 lb. capacity
• For boats 23-27 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish

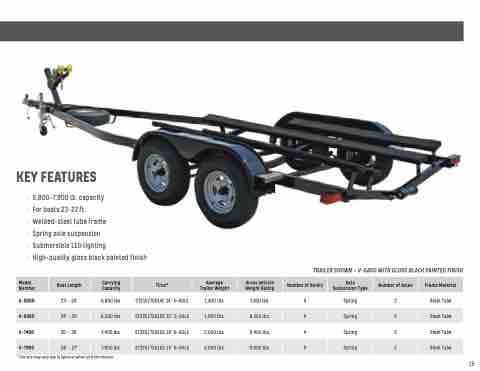

TRAILER SHOWN — V-5800 WITH GLOSS BLACK PAINTED FINISH
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
V-5800
23' - 24'
5,800 lbs.
ST215/75D14C 14" 5-HOLE
1,400 lbs.
7,200 lbs.
4
Spring
2
Steel Tube
V-6300
24' - 25'
6,300 lbs.
ST225/75D15D 15" 5-HOLE
1,950 lbs.
8,250 lbs.
4
Spring
2
Steel Tube
V-7400
25' - 26'
7,400 lbs.
ST225/75D15D 15" 6-HOLE
2,000 lbs.
9,400 lbs.
4
Spring
2
Steel Tube
V-7900
26' - 27'
7,900 lbs.
ST225/75D15D 15" 6-HOLE
2,000 lbs.
9,900 lbs.
4
Spring
2
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
15
