Page 17 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 8,000-14,500 lb. capacity
• For boats 25-32 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting

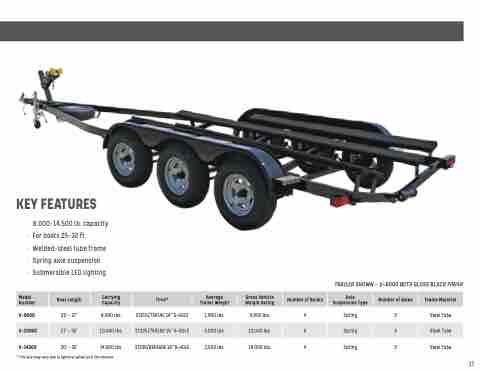

TRAILER SHOWN — V-8000 WITH GLOSS BLACK FINISH
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
V-8000
25' - 27'
8,000 lbs.
ST215/75R14C 14" 5-HOLE
1,900 lbs.
9,900 lbs.
4
Spring
3
Steel Tube
V-10000
27' - 30'
10,000 lbs.
ST225/75R15D 15" 6-HOLE
3,000 lbs.
13,000 lbs.
4
Spring
3
Steel Tube
V-14500
30' - 32'
14,500 lbs.
ST235/85R16DE 16" 8-HOLE
3,500 lbs.
18,000 lbs.
4
Spring
3
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
17
