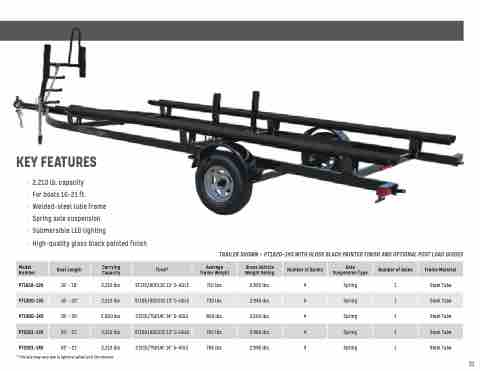

Page 31 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 2,210 lb. capacity
• For boats 16-21 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish
TRAILER SHOWN — PT1820-14S WITH GLOSS BLACK PAINTED FINISH AND OPTIONAL POST LOAD GUIDES
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
PT1618-13S
16' - 18'
2,210 lbs.
ST175/80D13C 13" 5-HOLE
710 lbs.
2,920 lbs.
4
Spring
1
Steel Tube
PT1820-13S
18' - 20'
2,210 lbs.
ST185/80D13C 13" 5-HOLE
730 lbs.
2,940 lbs.
4
Spring
1
Steel Tube
PT1820-14S
18' - 20'
2,650 lbs.
ST215/75D14C 14" 5-HOLE
850 lbs.
3,500 lbs.
4
Spring
1
Steel Tube
PT2021-13S
20' - 21'
2,210 lbs.
ST185/80D13C 13" 5-HOLE
750 lbs.
2,960 lbs.
4
Spring
1
Steel Tube
PT2021-14S
20' - 21'
2,210 lbs.
ST215/75D14C 14" 5-HOLE
785 lbs.
2,995 lbs.
4
Spring
1
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
31
