P. 33
KEY FEATURES
• 3,500-3,800 lb. capacity
• For boats 20-24 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish

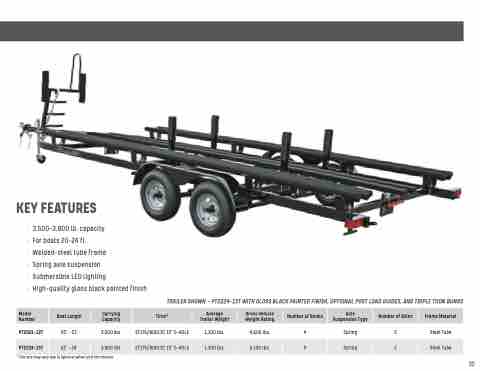

TRAILER SHOWN — PT2224-13T WITH GLOSS BLACK PAINTED FINISH, OPTIONAL POST LOAD GUIDES, AND TRIPLE TOON BUNKS
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
PT2021-13T
20' - 21'
3,500 lbs.
ST175/80D13C 13" 5-HOLE
1,100 lbs.
4,600 lbs.
4
Spring
2
Steel Tube
PT2224-13T
22' - 24'
3,800 lbs.
ST175/80D13C 13" 5-HOLE
1,300 lbs.
5,100 lbs.
4
Spring
2
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
