KEY FEATURES
• 5,500 lb. capacity
• For boats 22-28 ft.
• Welded-steel tube frame
• Spring axle suspension
• Submersible LED lighting
• High-quality gloss black painted finish

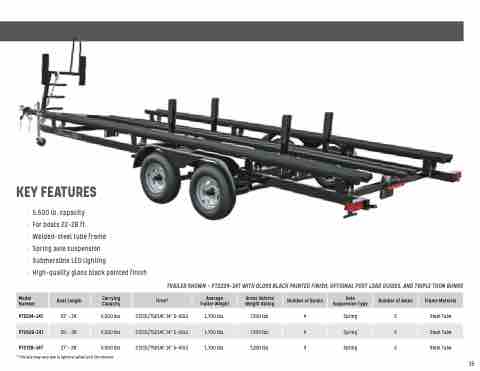

TRAILER SHOWN — PT2224-14T WITH GLOSS BLACK PAINTED FINISH, OPTIONAL POST LOAD GUIDES, AND TRIPLE TOON BUNKS
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
PT2224-14T
22' - 24'
5,500 lbs.
ST215/75D14C 14" 5-HOLE
1,700 lbs.
7,200 lbs.
4
Spring
2
Steel Tube
PT2526-14T
25' - 26'
5,500 lbs.
ST215/75D14C 14" 5-HOLE
1,700 lbs.
7,200 lbs.
4
Spring
2
Steel Tube
PT2728-14T
27' - 28'
5,500 lbs.
ST215/75D14C 14" 5-HOLE
1,700 lbs.
7,200 lbs.
4
Spring
2
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
