KEY FEATURES
• 6,600-7,500 lb. capacity
• For boats 28-32 ft.
• Adjustable bunk widths for 10-12 ft. boats
• Welded-steel tube frame
• Spring-axle suspension
• Submersible LED lighting
• Aluminum wheels

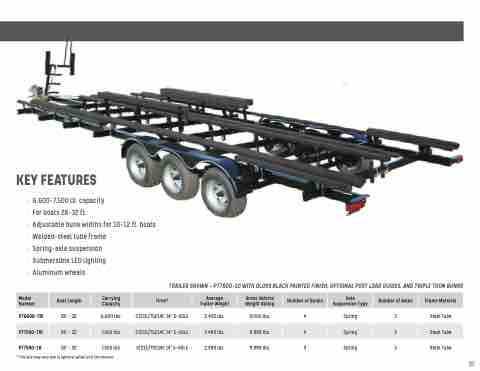

TRAILER SHOWN — PT7500-10 WITH GLOSS BLACK PAINTED FINISH, OPTIONAL POST LOAD GUIDES, AND TRIPLE TOON BUNKS
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
PT6600-TRI
28' - 32'
6,600 lbs.
ST215/75D14C 14" 5-HOLE
2,400 lbs.
9,000 lbs.
4
Spring
3
Steel Tube
PT7500-TRI
28' - 32'
7,500 lbs.
ST215/75D14C 14" 5-HOLE
2,499 lbs.
9,999 lbs.
4
Spring
3
Steel Tube
PT7500-10
28' - 32'
7,500 lbs.
ST215/75D14C 14" 5-HOLE
2,499 lbs.
9,999 lbs.
4
Spring
3
Steel Tube
* Tire size may vary due to optional wheel and tire choices.
