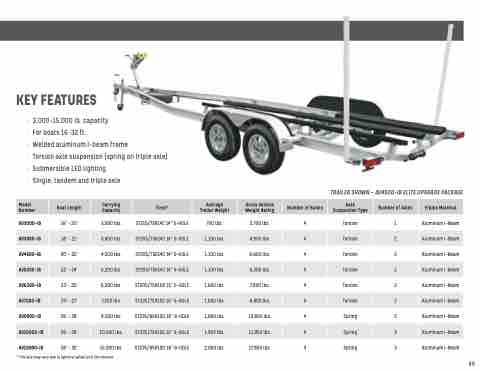

Page 49 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 3,000-15,000 lb. capacity
• For boats 16-32 ft.
• Welded aluminum I-beam frame
• Torsion axle suspension (spring on triple axle)
• Submersible LED lighting
• Single, tandem and triple axle
TRAILER SHOWN — AV4500-IB ELITE UPGRADE PACKAGE
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
AV3000-IB
16' - 20'
3,000 lbs.
ST215/75R14C 14" 5-HOLE
700 lbs.
3,700 lbs.
4
Torsion
1
Aluminum I-Beam
AV3800-IB
18' - 21'
3,800 lbs.
ST205/75R14C 14" 5-HOLE
1,100 lbs.
4,900 lbs.
4
Torsion
2
Aluminum I-Beam
AV4500-IB
20' - 22'
4,500 lbs.
ST205/75R14C 14" 5-HOLE
1,100 lbs.
5,600 lbs.
4
Torsion
2
Aluminum I-Beam
AV5200-IB
22' - 24'
5,200 lbs.
ST205/75R14C 14" 5-HOLE
1,100 lbs.
6,300 lbs.
4
Torsion
2
Aluminum I-Beam
AV6300-IB
23' - 25'
6,300 lbs.
ST205/75R15D 15" 5-HOLE
1,600 lbs.
7,900 lbs.
4
Torsion
2
Aluminum I-Beam
AV7200-IB
24' - 27'
7,200 lbs.
ST225/75R15D 15" 6-HOLE
1,600 lbs.
8,800 lbs.
4
Torsion
2
Aluminum I-Beam
AV9000-IB
26' - 28'
9,000 lbs.
ST235/85R15D 16" 8-HOLE
1,850 lbs.
10,850 lbs.
4
Spring
2
Aluminum I-Beam
AV10000-IB
26' - 28'
10,000 lbs.
ST225/75R15D 15" 6-HOLE
1,952 lbs.
11,952 lbs.
4
Spring
3
Aluminum I-Beam
AV15000-IB
28' - 32'
15,000 lbs.
ST235/85R15D 16" 8-HOLE
2,850 lbs.
17,850 lbs.
4
Spring
3
Aluminum I-Beam
* Tire size may vary due to optional wheel and tire choices.
