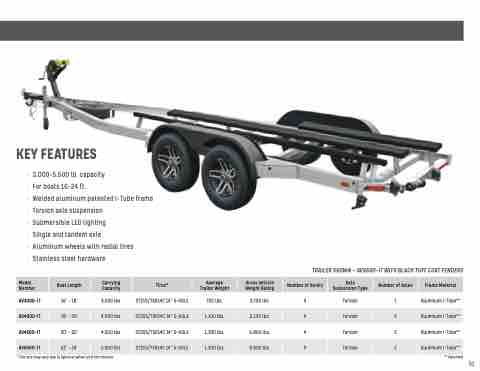

Page 51 - EZ Loader Welded Frame Brochure Version 1

KEY FEATURES
• 3,000-5,500 lb. capacity
• For boats 16-24 ft.
• Welded aluminum patented I-Tube frame
• Torsion axle suspension
• Submersible LED lighting
• Single and tandem axle
• Aluminum wheels with radial tires
• Stainless steel hardware
TRAILER SHOWN — AV5500-IT WITH BLACK TUFF COAT FENDERS
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
AV3000-IT
16' - 18'
3,000 lbs.
ST215/75R14C 14" 5-HOLE
700 lbs.
3,700 lbs.
4
Torsion
1
Aluminum I-Tube**
AV4000-IT
18' - 20'
4,000 lbs.
ST205/75R14C 14" 5-HOLE
1,100 lbs.
5,100 lbs.
4
Torsion
2
Aluminum I-Tube**
AV4500-IT
20' - 22'
4,500 lbs.
ST205/75R14C 14" 5-HOLE
1,300 lbs.
5,800 lbs.
4
Torsion
2
Aluminum I-Tube**
AV5500-IT
22' - 24'
5,500 lbs.
ST215/75R14C 14" 5-HOLE
1,300 lbs.
6,800 lbs.
4
Torsion
2
Aluminum I-Tube**
* Tire size may vary due to optional wheel and tire choices.
** Patented
51
