KEY FEATURES
• 2,145-5,500 lb. capacity
• For boats 18-28 ft.
• Welded aluminum I-beam frame
• Spring axle suspension
• Submersible LED lighting
• Single and tandem axle

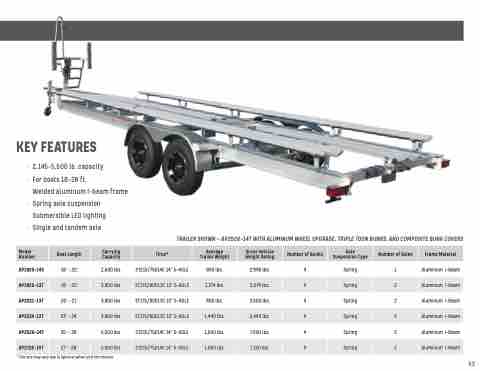

TRAILER SHOWN — AP2526-14T WITH ALUMINUM WHEEL UPGRADE, TRIPLE TOON BUNKS, AND COMPOSITE BUNK COVERS
Model Number
Boat Length
Carrying Capacity
Tires*
Average Trailer Weight
Gross Vehicle Weight Rating
Number of Bunks
Axle Suspension Type
Number of Axles
Frame Material
AP1820-14S
18' - 20'
2,600 lbs.
ST215/75D14C 14" 5-HOLE
850 lbs.
2,995 lbs.
4
Spring
1
Aluminum I-Beam
AP1820-13T
18' - 20'
3,800 lbs.
ST175/80D13C 13" 5-HOLE
1,274 lbs.
5,074 lbs.
4
Spring
2
Aluminum I-Beam
AP2021-13T
20' - 21'
3,800 lbs.
ST175/80D13C 13" 5-HOLE
900 lbs.
3,500 lbs.
4
Spring
2
Aluminum I-Beam
AP2224-13T
22' - 24'
3,800 lbs.
ST175/80D13C 13" 5-HOLE
1,440 lbs.
5,440 lbs.
4
Spring
2
Aluminum I-Beam
AP2526-14T
25' - 26'
5,500 lbs.
ST215/75D14C 14" 5-HOLE
1,500 lbs.
7,000 lbs.
4
Spring
2
Aluminum I-Beam
AP2728-14T
27' - 28'
5,500 lbs.
ST215/75D14C 14" 5-HOLE
1,650 lbs.
7,150 lbs.
4
Spring
2
Aluminum I-Beam
* Tire size may vary due to optional wheel and tire choices.
