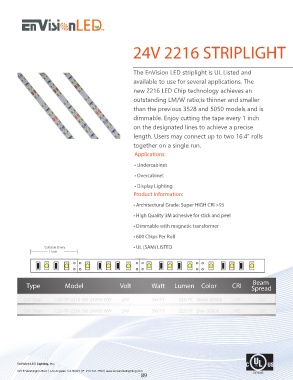

Page 106 - Envision E-Catalog

24V 2216 STRIPLIGHT

The EnVision LED striplight is UL Listed and
available to use for several applications. The
new 2216 LED Chip technology achieves an

outstanding LM/W ratio;is thinner and smaller
than the previous 3528 and 5050 models and is

dimmable. Enjoy cutting the tape every 1 inch
on the designated lines to achieve a precise
length. Users may connect up to two 16.4” rolls

together on a single run.
Applications:

• Undercabinet

• Overcabinet

• Display Lighting
Product Information:
• Architectural Grade: Super HIGH CRI >95

• High Quality 3M adhesive for stick and peel

• Dimmable with magnetic transformer

• 600 Chips Per Roll

Cuttable Every • UL (SAM) LISTED
1 inch

Beam
Type Model Volt Watt Lumen Color CRI Spread

24V Strip LED-TP-2216-3W-24V95-WW 24V 3W/FT 225/FT Warm-3000k >95 120°

24V Strip LED-TP-2216-3W-24V95-WW 24V 3W/FT 225/FT Day- 5000k >95 120°

EnVision LED Lighting, Inc.
801 E Washington Blvd. | Los Angeles, CA 90021 | P: 213-741-1550 | www.envisionledlighting.com E478045
89
