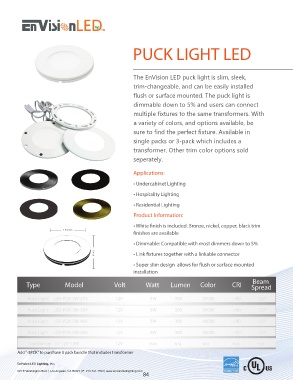

Page 114 - Envision E-Catalog

PUCK LIGHT LED

The EnVision LED puck light is slim, sleek,
trim-changeable, and can be easily installed

flush or surface mounted. The puck light is
dimmable down to 5% and users can connect
multiple fixtures to the same transformers. With

a variety of colors, and options available, be
sure to find the perfect fixture. Available in

single packs or 3-pack which includes a
transformer. Other trim color options sold
seperately.

Applications:

• Undercabinet Lighting

• Hospitality Lighting
• Residential Lighting

Product Information:

• White nish is included. Bronze, nickel, copper, black trim
2.5 inches
nishes are available
• Dimmable: Compatible with most dimmers down to 5%
• Link xtures together with a linkable connector
.5 inch
• Super slim design allows for ush or surface mounted
installation
Beam
Type Model Volt Watt Lumen Color CRI Spread

Puck Light LED-PCK-3W-27K 12V 3W 300 2700K >90 120°

Puck Light LED-PCK-3W-30K 12V 3W 300 3000K >90 120°

Puck Light LED-PCK-3W-40K 12V 3W 300 4000K >90 120°

Puck Light LED-PCK-3W-50K 12V 3W 300 5000K >90 120°

Transformer ET-12V-15W 12V n/a n/a n/a n/a n/a
Add “-3PCK” to purchase 3 pack bundle that includes transformer

EnVision LED Lighting, Inc.
801 E Washington Blvd. | Los Angeles, CA 90021 | P: 213-741-1550 | www.envisionledlighting.com
