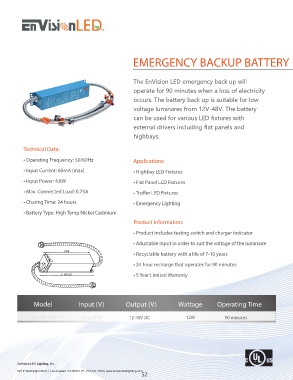

Page 60 - Envision E-Catalog
P. 60
EMERGENCY BACKUP BATTERY
The EnVision LED emergency back up will
operate for 90 minutes when a loss of electricity
occurs. The battery back up is suitable for low
voltage luminares from 12V-48V. The battery
can be used for various LED fixtures with
external drivers including flat panels and
highbays.
Technical Data:
• Operating Frequency: 50/60Hz Applications:
• Input Current: 65mA (max) • Highbay LED Fixtures
• Input Power: 4.8W • Flat Panel LED Fixtures
• Max. Connected Load: 0.75A • Troer LED Fixtures
• Charing Time: 24 hours • Emergency Lighting
• Battery Type: High Temp Nickel Cadmium
Product Information:
• Product includes testing switch and charger indicator
• Adustable input in order to suit the voltage of the luminaire
• Recyclable battery with a life of 7-10 years
• 24 hour recharge that operates for 90 minutes
• 5 Year Limited Warranty
Model Input (V) Output (V) Wattage Operating Time
LED-EMB-12W-LV 120V-277V 12-48V DC 12W 90 minutes
