Page 278 - Copper and Bronze in Art: Corrosion, Colorants, Getty Museum Conservation, By David Scott
P. 278

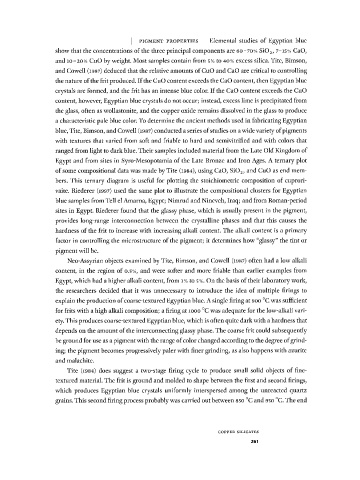

I  PIGMENT  PROPERTIES  Elemental  studies  of Egyptian  blue
          show that the concentrations  of the three principal components  are 60-70% Si0 2 ,  7-15%  CaO,
          and 10-20% CuO by weight. Most samples contain from  5% to 40%  excess silica. Tite, Bimson,
          and Cowell  (i987)  deduced  that the relative amounts  of CuO and CaO are critical to controlling
                                   I
          the nature  of the frit produced. f the CuO content exceeds the CaO content, then Egyptian blue
                                                         I
          crystals  are formed, and the frit  has  an intense blue color. f the  CaO content  exceeds the CuO
          content, however, Egyptian blue crystals do not occur; instead,  excess lime is precipitated  from
          the glass, often  as wollastonite, and the copper  oxide remains  dissolved in the glass to  produce
          a characteristic  pale blue color. To determine  the ancient  methods  used in fabricating Egyptian
          blue, Tite, Bimson, and Cowell (i987) conducted a series of studies on a wide variety of pigments
          with  textures  that varied from  soft  and  friable  to hard  and  semivitrified  and with  colors  that
          ranged  from  light to dark blue. Their samples included material from  the Late Old Kingdom of
          Egypt  and  from  sites in Syro-Mesopotamia  of the  Late Bronze  and Iron  Ages. A ternary plot
          of  some compositional data was made by Tite (i984), using CaO, Si0 2 , and CuO  as end mem­
          bers. This  ternary  diagram  is  useful  for plotting  the  stoichiometric composition of cuprori-
          vaite. Riederer  (1997)  used the  same plot to illustrate the  compositional clusters  for Egyptian
          blue samples from Tell el Amarna, Egypt; Nimrud and Nineveh, Iraq; and from  Roman-period
          sites in Egypt. Riederer  found that  the  glassy  phase, which  is usually present in the  pigment,
          provides  long-range  interconnection  between  the  crystalline phases and  that  this  causes  the
          hardness of the  frit  to increase with  increasing  alkali content. The  alkali content  is a primary
          factor in controlling the microstructure of the pigment; it determines  how "glassy"  the tint or
          pigment will be.
              Neo-Assyrian objects  examined by Tite, Bimson, and Cowell  (i987)  often had  a low alkali
          content,  in the  region of  0.5%,  and  were  softer  and  more  friable  than  earlier  examples  from
          Egypt, which had a higher alkali content, from  1% to  5%. On the basis of their laboratory work,
          the  researchers  decided  that  it was  unnecessary  to  introduce  the  idea  of multiple  firings  to
          explain the production of coarse-textured  Egyptian blue. A single  firing  at 900  °C was sufficient
          for  frits with a high alkali composition; a  firing  at 1000  °C was adequate for the low-alkali vari­
          ety. This produces coarse-textured  Egyptian blue, which is often quite dark with a hardness that
          depends on the amount of the interconnecting glassy phase. The coarse frit  could  subsequently
          be ground for use  as a pigment with the range of color changed  according to the degree of grind­
          ing;  the pigment becomes progressively paler with finer grinding,  as also happens with  azurite
          and malachite.
              Tite  (1984)  does  suggest  a  two-stage  firing  cycle  to  produce  small  solid  objects  of  fine-
          textured material. The frit  is ground and molded to shape between  the  first  and second  firings,
          which  produces  Egyptian blue  crystals  uniformly  interspersed  among  the  unreacted  quartz
          grains. This second  firing  process probably was carried out between  850 °C and  950  °C. The end




                                                           COPPER  SILICATES
                                                                     261
   273   274   275   276   277   278   279   280   281   282   283
