Make barcode reading much more easier

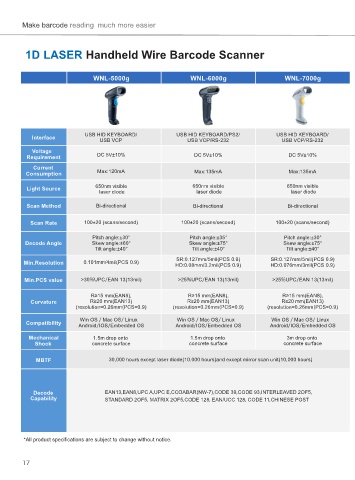

1D LASER Handheld Wire Barcode Scanner 1D CCD Handheld Wire Barcode Scanner

WNL-5000g WNL-6000g WNL-7000g WNC-5060g WNC-5070g WNC-5080g

USB HID KEYBOARD/ USB HID KEYBOARD/PS2/ USB HID KEYBOARD/ USB HID KEYBOARD/ USB HID KEYBOARD/ USB HID KEYBOARD/
Interface Interface
USB VCP USB VCP/RS-232 USB VCP/RS-232 USB VCP/RS-232 USB VCP/RS-232 USB VCP
Voltage Voltage
Requirement DC 5V±10% DC 5V±10% DC 5V±10% Requirement DC 5V±10% DC 5V±10% DC 5V±10%
Current Current
Consumption Max:120mA Max:135mA Max:135mA Consumption Max:115mA Max:120mA Max:120mA
650nm visible 650nm visible 650nm visible
Light Source Light Source 632nm Red LED 632nm Red LED 632nm Red LED
laser diode laser diode laser diode
Scan Method Bi-directional Bi-directional Bi-directional Photo Sensor CCD linear sensor CCD linear sensor CCD linear sensor

Scan Rate 100±20 (scans/second) 100±20 (scans/second) 100±20 (scans/second) Sensor 1500pix 2500pix 2500pix
Resolution
Pitch angle:±30° Pitch angle:±35° Pitch angle:±30°
Decode Angle Skew angle:±60° Skew angle:±75° Skew angle:±75° Scan Rate 350±50 (scans/second) 350± 50 (scans/second) 350± 50 (scans/second)
Tilt angle:±40° Tilt angle:±40° Tilt angle:±40°
Pitch angle:±30° Pitch angle:±30° Pitch angle:±30°
SR:0.127mm/5mil(PCS 0.9) SR:0.127mm/5mil(PCS 0.9)
Min.Resolution 0.101mm/4mil(PCS 0.9) Decode Angle Skew angle:±60° Skew angle:±70° Skew angle:±70°
HD:0.08mm/3.2mil(PCS 0.9) HD:0.076mm/3mil(PCS 0.9) Tilt angle:±30° Tilt angle:±45° Tilt angle:±45°
Min.PCS value >30%UPC/EAN 13(13mil) >25%UPC/EAN 13(13mil) >25%UPC/EAN 13(13mil) Min.Resolution 0.127mm/5mil(PCS 0.9) 0.127mm/5mil(PCS 0.9) 0.101mm/4mil(PCS 0.9)

R≥15 mm(EAN8), R≥15 mm(EAN8), R≥15 mm(EAN8),
Curvature R≥20 mm(EAN13) R≥20 mm(EAN13) R≥20 mm(EAN13) Min.PCS value >30%UPC/EAN 13(13mil) >20%UPC/EAN 13(13mil) >25%UPC/EAN 13(13mil)
(resolution=0.26mm(PCS=0.9) (resolution=0.26mm(PCS=0.9) (resolution=0.26mm(PCS=0.9)
R≥15 mm(EAN8), R≥15 mm(EAN8), R≥15 mm(EAN8),
Win OS / Mac OS/ Linux Win OS / Mac OS/ Linux Win OS / Mac OS/ Linux Curvature R≥20 mm(EAN13) R≥20 mm(EAN13) R≥20 mm(EAN13)
Compatibility
Android/IOS/Embedded OS Android/IOS/Embedded OS Android/IOS/Embedded OS (resolution=0.26mm(PCS=0.9) (resolution=0.26mm(PCS=0.9) (resolution=0.26mm(PCS=0.9)
Mechanical 1.5m drop onto 1.5m drop onto 3m drop onto Compatibility Win OS / Mac OS/ Linux Win OS / Mac OS/ Linux Win OS / Mac OS/ Linux
Shock concrete surface concrete surface concrete surface Android/IOS/Embedded OS Android/IOS/Embedded OS Android/IOS/Embedded OS

Mechanical 1.5m drop onto 1.5m drop onto 1.5m drop onto
MBTF 30,000 hours except laser diode(10.000 hours)and except mirror scan unit(10,000 hours)
Shock concrete surface concrete surface concrete surface

Decode EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5, Decode EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,
Capability STANDARD 2OF5, MATRIX 2OF5,CODE 128, EAN/UCC 128, CODE 11,CHINESE POST Capability STANDARD 2OF5, MATRIX 2OF5,CODE 128, EAN/UCC 128, CODE 11,CHINESE POST

Decode
*All product specifications are subject to change without notice.
